DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

Broan**DISCONTINUED** Broan® LoLP50100DCF

Broan Ducted Bathroom Fan (Ventilation Fan). Model LP50100DC. Brushless DC motor with permanent lubrication; Selectable airflow settings: 50, 80, 100 CFM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLP50100DCF.pdfData sheet

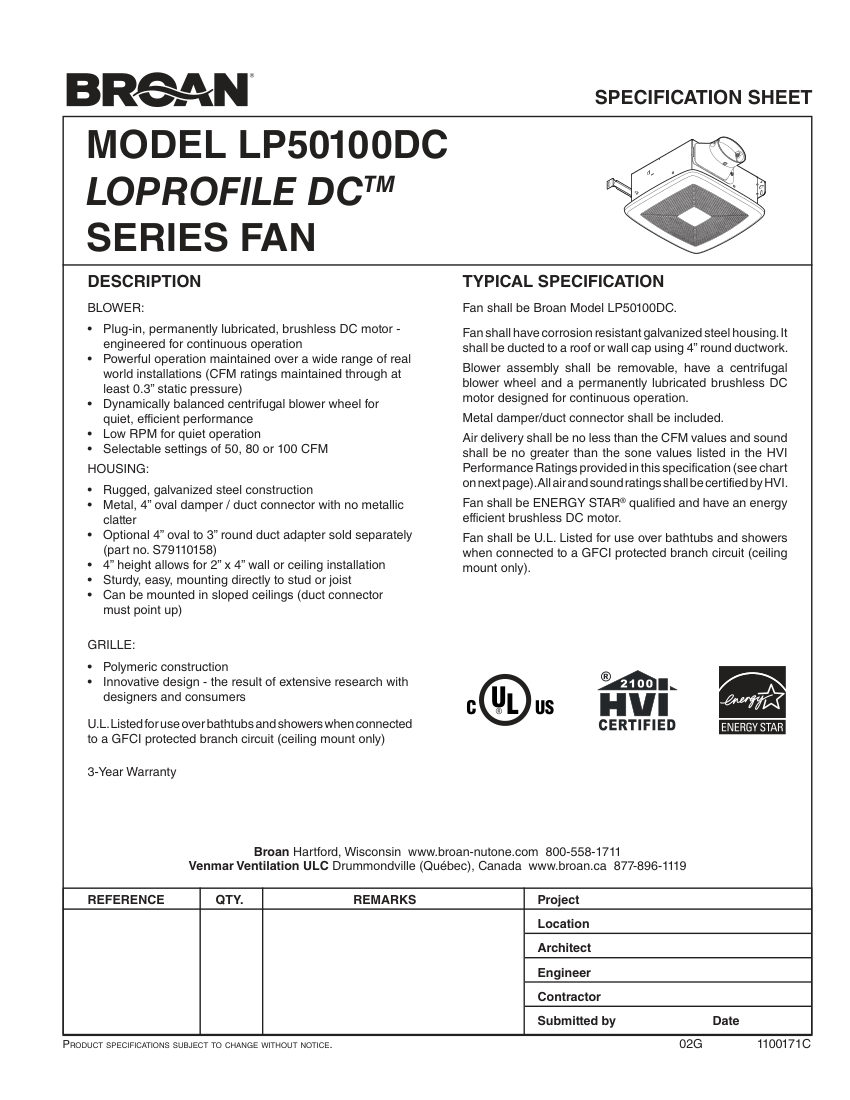

Broan LP50100DCF cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
LP50100DCF
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLP50100DCF
DescriptionBroan Ducted Bathroom Fan (Ventilation Fan). Model LP50100DC. Brushless DC motor with permanent lubrication; Selectable airflow settings: 50, 80, 100 CFM
Sound levels<0.3 sones at 50 CFM, 1.2 sones at 100 CFM
Shipping weight9.5 lbs. material: Galvanized steel housing, polymeric grille
Connection size4" oval damper / duct connector
End connectionDucted to roof or wall cap
Pressure Rating0.1 inH2O (HVI certified), 0.25 inH2O
Flow Rate50, 80, or 100 CFM
MountingCeiling or wall (2x4 stud/joist), sloped ceiling capable.

Also cataloged as: LPDCH
