BroanBroanLP510RSL
Broan Ventilation Fan (Ventilation). Model LP510RSL. DC motor rated for continuous operation; Humidity control with sensor (30%-80% range); 10W LED light (4000K, 840 Lumens); Noise levels up to 1.2 Sones at 100 CFM. material: Galvanized steel housing, polymeric grille
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- LP510RSL
- Product type
- Ventilation
- MasterFormat
- 23

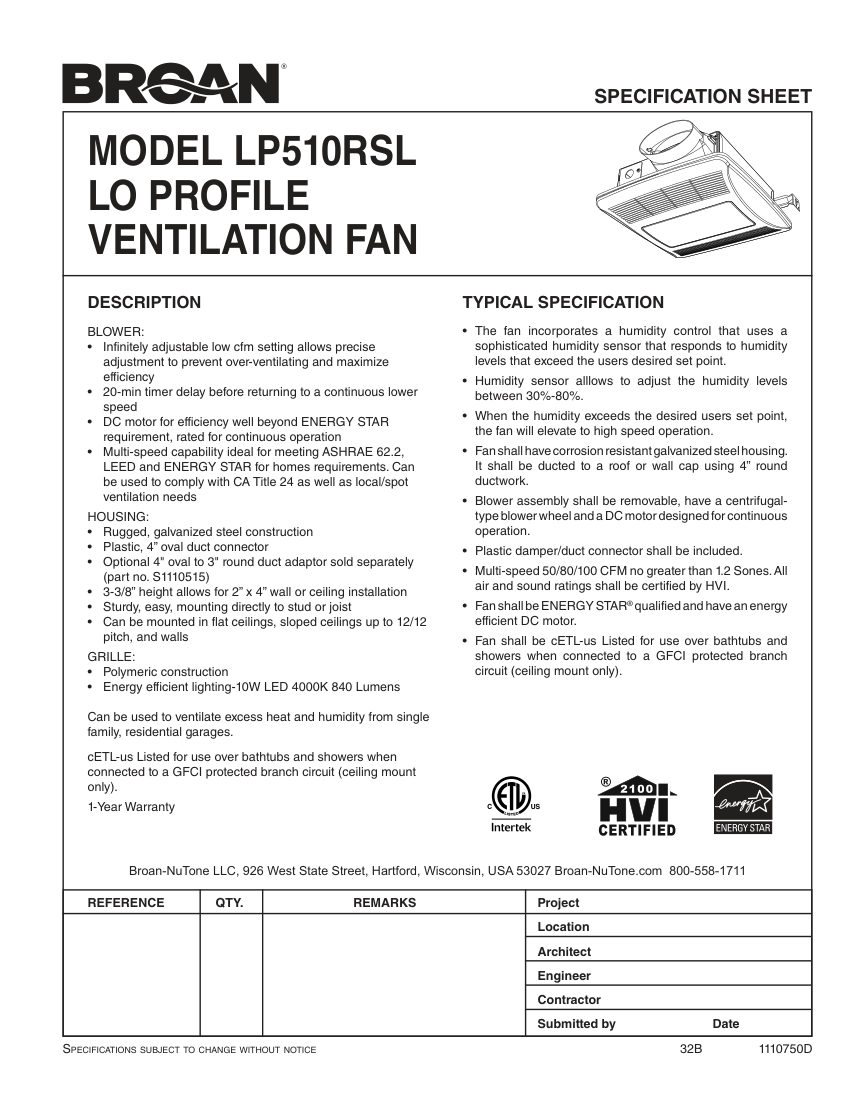

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | LP510RSL |
|---|---|
| Description | Broan Ventilation Fan (Ventilation). Model LP510RSL. DC motor rated for continuous operation; Humidity control with sensor (30%-80% range); 10W LED light (4000K, 840 Lumens); Noise levels up to 1.2 Sones at 100 CFM. material: Galvanized steel housing, polymeric grille |
| Connection size | 4" oval duct connector |
| End connection | Ducted to roof or wall cap |
| Flow Rate | 50/80/100 CFM |
| Mounting | Stud or joist, flat or sloped ceilings (up to 12/12 pitch), walls |
| Dimensions | 13-3/4" x 10-1/4" x 3-3/8". |
