BroanBroanLP80
Broan Ventilation Fan (Ventilation). Model LP80. 80 CFM airflow at 0.1 in. w.g. static pressure (4" duct); 1.0 Sones sound level at 0.1 in. w.g. static pressure (4" duct); 25.7 Watts power consumption; 0.3 Amps current draw. material: Galvanized steel housing, polymeric grille
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- LP80
- Product type
- Ventilation
- MasterFormat
- 23

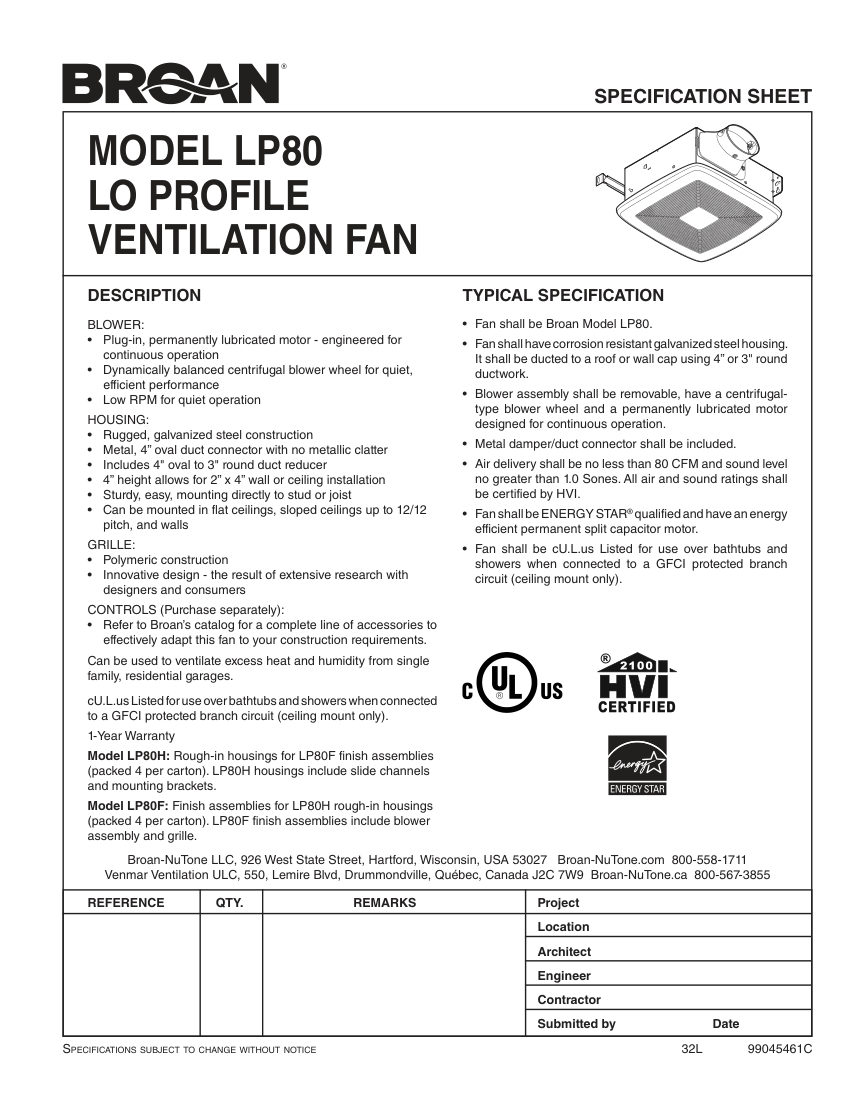

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | LP80 |
|---|---|
| Description | Broan Ventilation Fan (Ventilation). Model LP80. 80 CFM airflow at 0.1 in. w.g. static pressure (4" duct); 1.0 Sones sound level at 0.1 in. w.g. static pressure (4" duct); 25.7 Watts power consumption; 0.3 Amps current draw. material: Galvanized steel housing, polymeric grille |
| Connection size | 4" oval duct connector with 4" to 3" round reducer |
| End connection | Ducted to roof or wall cap |
| Flow Rate | 80 CFM (4" duct), 70 CFM (3" duct) |
| Mounting | Stud or joist, flat or sloped ceilings (up to 12/12 pitch), walls |
| Dimensions | 4" height. |
