BroanBroanLP80F
Broan Ventilation Fan (Ventilation). Model LP80. Plug-in, permanently lubricated motor; Dynamically balanced centrifugal blower wheel; Sound level no greater than 1.0 Sones; Includes metal damper/duct connector. material: Galvanized steel housing, polymeric grille
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- LP80F
- Product type
- Ventilation
- MasterFormat
- 23

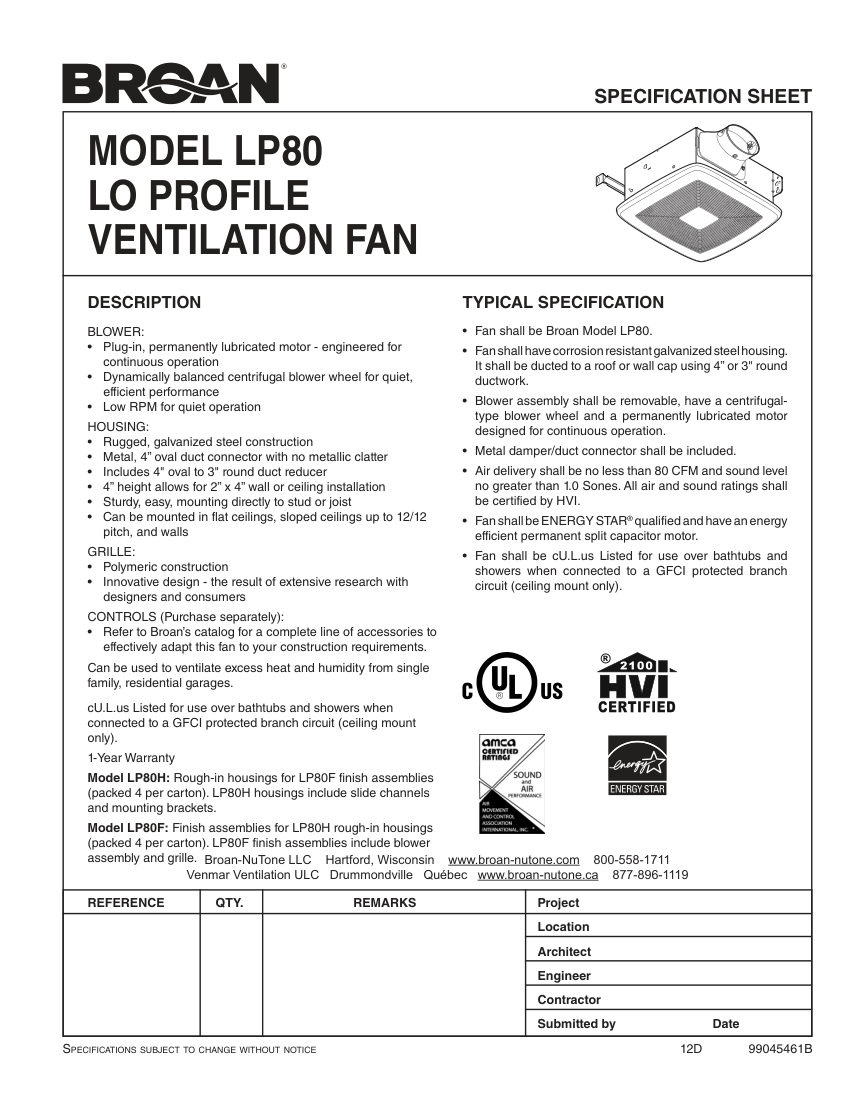

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | LP80F |
|---|---|
| Description | Broan Ventilation Fan (Ventilation). Model LP80. Plug-in, permanently lubricated motor; Dynamically balanced centrifugal blower wheel; Sound level no greater than 1.0 Sones; Includes metal damper/duct connector. material: Galvanized steel housing, polymeric grille |
| Connection size | 4" oval duct connector, 4" to 3" round reducer |
| End connection | Ducted |
| Flow Rate | 80 CFM minimum |
| Mounting | Stud or joist, flat or sloped ceilings (up to 12/12 pitch), walls |
| Dimensions | 4" height. |
Also cataloged as: LP80H
