BroanNuTone® 30NCDA130SS

Broan Under-Cabinet Range Hood (Broan NuTone Unity). Model NCDA130WW/NCDA130BL/NCDA130SS. 3-speed Capacitive Touch controls; 2-level LED lighting included; Micro Mesh grease filters (Qty. 2)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFNCDA130SS.pdfData sheet

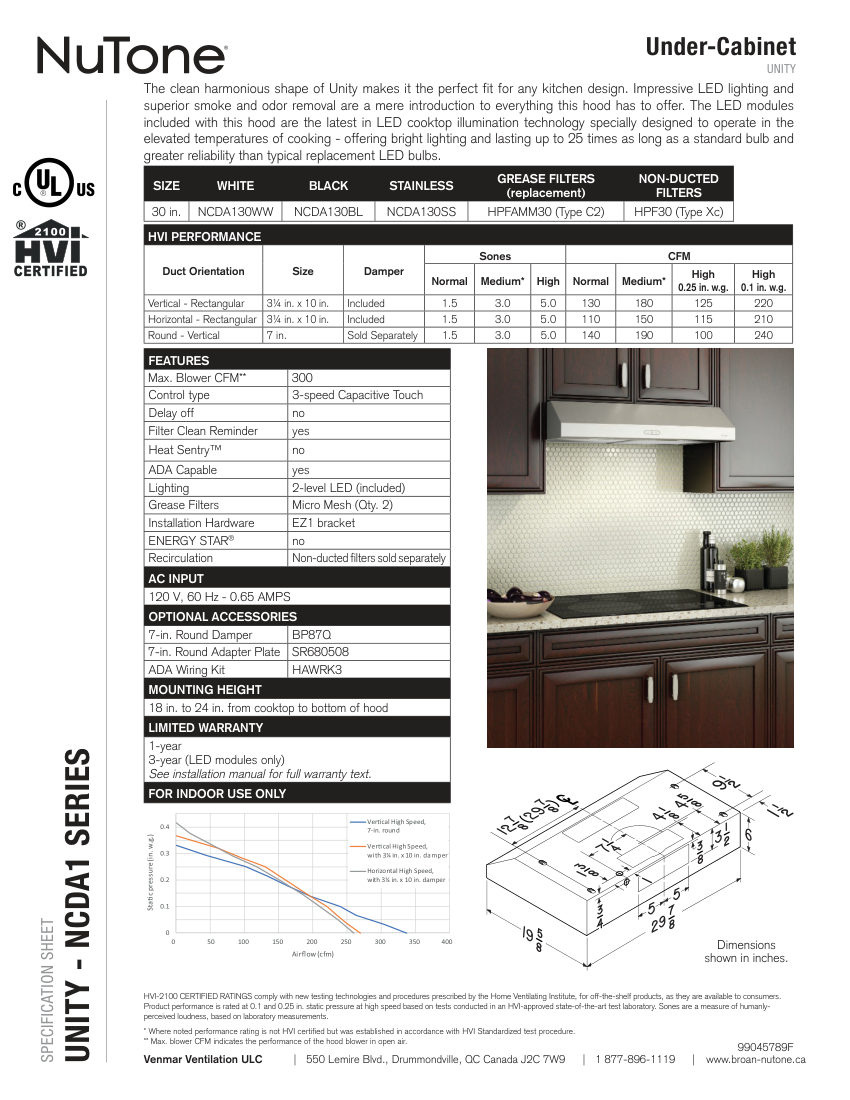

Broan NCDA130SS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
NCDA130SS
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberNCDA130SS
DescriptionBroan Under-Cabinet Range Hood (Broan NuTone Unity). Model NCDA130WW/NCDA130BL/NCDA130SS. 3-speed Capacitive Touch controls; 2-level LED lighting included; Micro Mesh grease filters (Qty. 2)
Sones1.5 (Normal), 3.0 (Medium), 5.0 (High). material: Stainless Steel, White, Black
Connection size3.25 in. x 10 in. rectangular or 7 in. round
End connectionDucted or Non-Ducted (recirculating)
Flow Rate300 CFM max
FinishWhite, Black, Stainless
MountingUnder-Cabinet, 18-24 in. from cooktop.

Also cataloged as: NCDA130WW
