DIV 23 · HVACVENTILATIONCUT SHEET INDEXED
BroanNuTone Unity 30NCS330BLC
Broan Under-Cabinet Range Hood (Range Hood). Model NCS330BLC, NCS330WWC, NCS330SSC. Max Blower CFM: 300
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- NCS330BLC
- Product type
- Ventilation
- MasterFormat
- 23

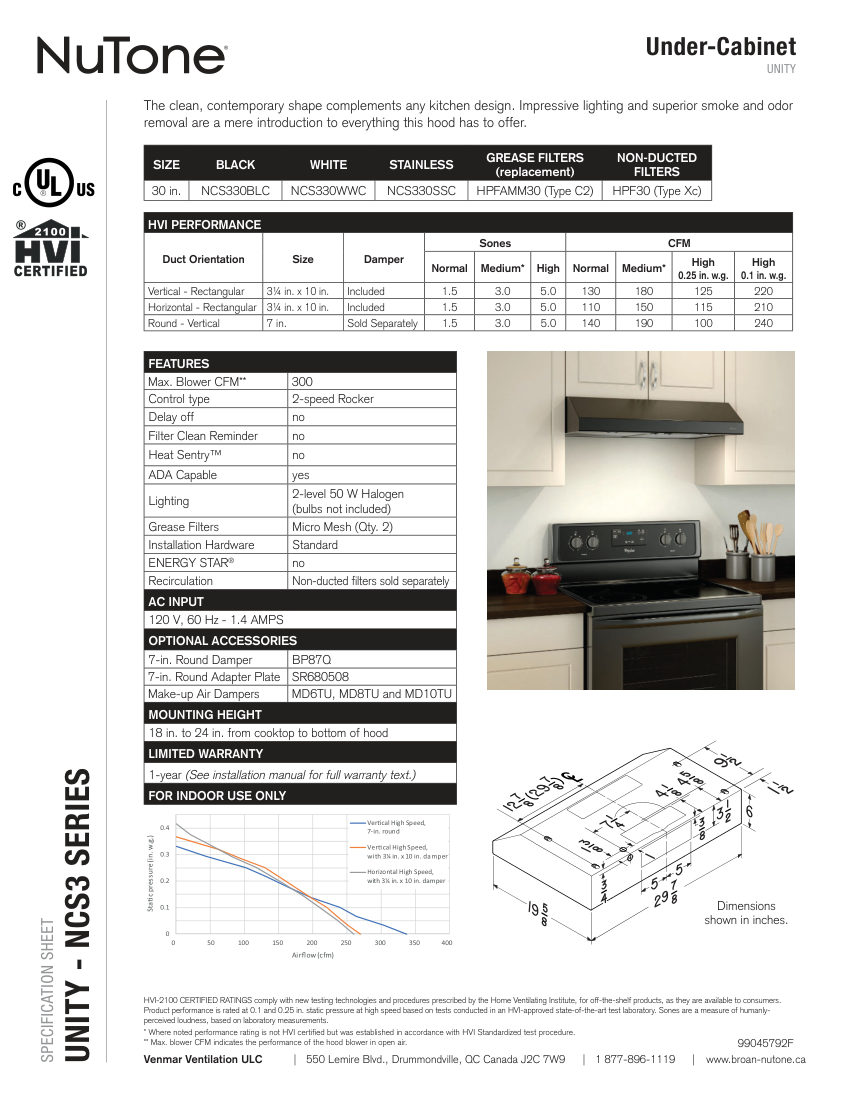

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | NCS330BLC |
|---|---|
| Description | Broan Under-Cabinet Range Hood (Range Hood). Model NCS330BLC, NCS330WWC, NCS330SSC. Max Blower CFM: 300 |
| Control Type | 2-speed Rocker |
| Lighting | 2-level 50 W Halogen |
| Grease Filters | Micro Mesh (Qty. 2). material: Black, White, Stainless |
| Connection size | 3¼ in. x 10 in. (Rectangular), 7 in. (Round) |
| End connection | Vertical or Horizontal Ducted, Non-Ducted (Recirculating) |
| Flow Rate | 300 CFM Max |
| Finish | Black, White, Stainless |
| Mounting | Under-Cabinet, 18 in. to 24 in. from cooktop. |
Also cataloged as: NCS330SSC, NCS330WWC
