Broan**DISCONTINUED** Broan® Elite 20.5PM500SS

Broan Power Pack (Range Hood). Model PM500SS. Centrifugal blower rated at 500 CFM and 9.5 Sones; Includes two washable aluminum mesh filters; Accepts two 12 V, 20 W halogen lamps (Type JC, G-4 Base); Multi-speed fan control with separate light switch. material: 430 stainless steel, electro-galvanized steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPM500SS.pdfData sheet

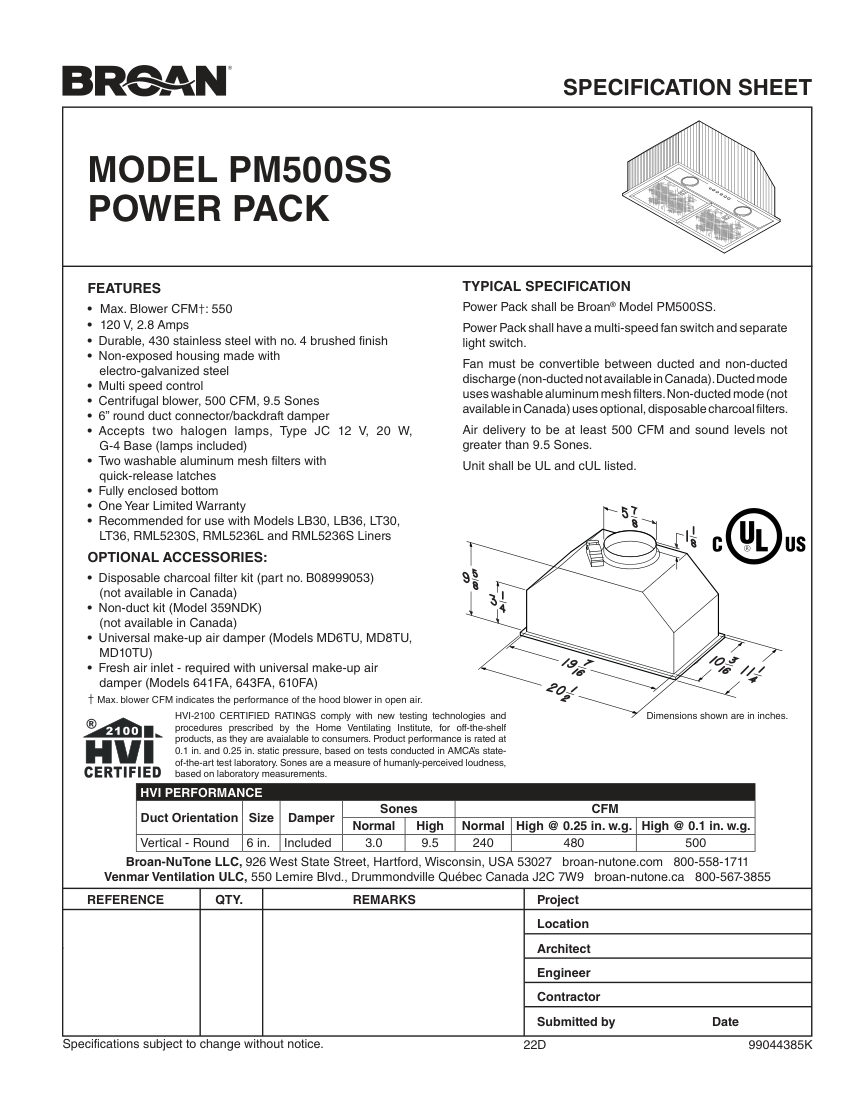

Broan PM500SS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
PM500SS
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPM500SS
DescriptionBroan Power Pack (Range Hood). Model PM500SS. Centrifugal blower rated at 500 CFM and 9.5 Sones; Includes two washable aluminum mesh filters; Accepts two 12 V, 20 W halogen lamps (Type JC, G-4 Base); Multi-speed fan control with separate light switch. material: 430 stainless steel, electro-galvanized steel
Connection size6 in. round duct
End connectionRound duct connector with backdraft damper
Flow Rate500 CFM (HVI High @ 0.1 in. w.g.)
FinishNo. 4 brushed
MountingConvertible ducted/non-ducted.
