BroanBroanPM600SSV

Broan Custom Range Hood Insert (Range Hood). Model PM600SSV. 4-speed electronic soft touch control with WiFi connectivity; Automatic Infrared Sensing adjusts fan speed; Includes 1 Hybrid Baffle Filter (HPFBN1); 3-level LED lighting with 2 LED modules included. material: Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPM600SSV.pdfData sheet

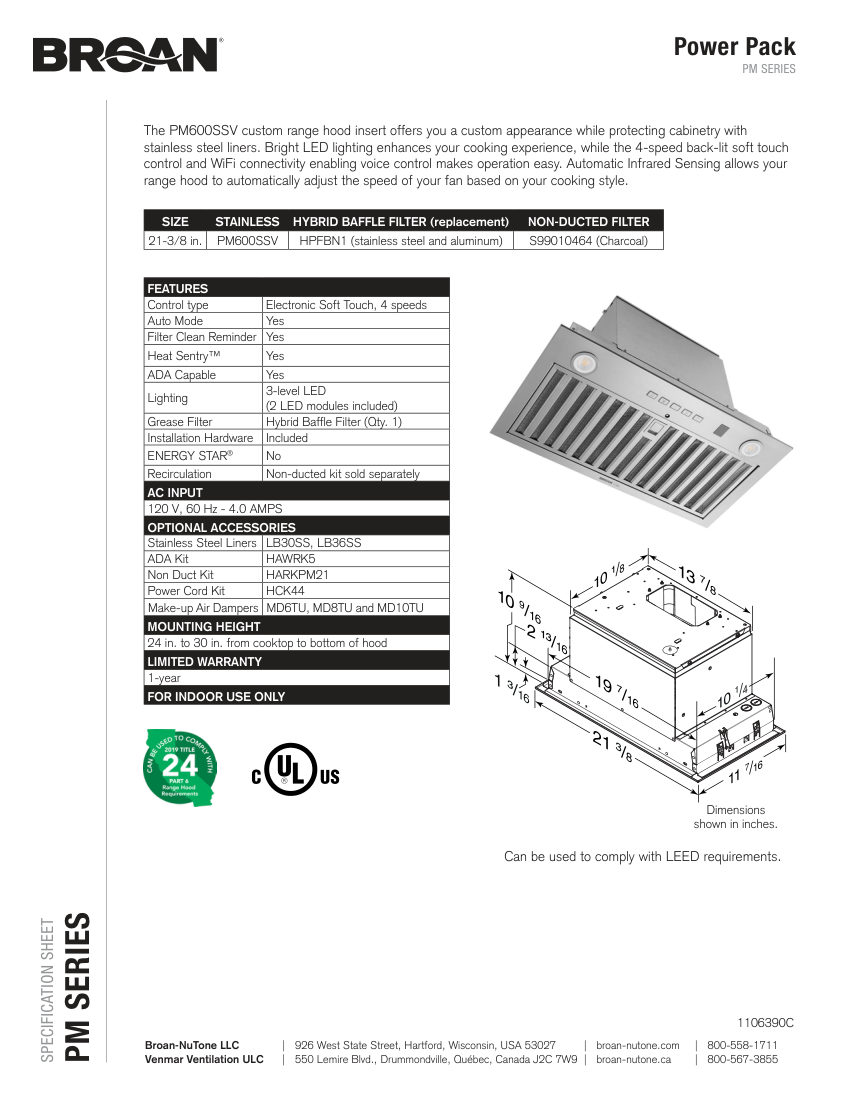

Broan PM600SSV cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
PM600SSV
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPM600SSV
DescriptionBroan Custom Range Hood Insert (Range Hood). Model PM600SSV. 4-speed electronic soft touch control with WiFi connectivity; Automatic Infrared Sensing adjusts fan speed; Includes 1 Hybrid Baffle Filter (HPFBN1); 3-level LED lighting with 2 LED modules included. material: Stainless Steel
Connection size3-1/4 x 10 in. rectangular or 6/8 in. round
End connectionDucted (Non-ducted kit sold separately)
Flow Rate580 CFM (Vertical High Speed, 6-in. round)
FinishStainless
Mounting24 in. to 30 in. from cooktop to bottom of hood.
