DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanEVOLVE Premium Exhaust Fan w/ Continuous Run, 110PTE1115RK

Broan Ceiling Exhaust Fan (Exhaust Fan). Model PTE511RK, PTEL511RK, PTE1115RK, PTEL1115RK. Selectable CFM settings: 50-80-110 or 110-130-150; Continuous run capability for whole home ventilation; Resin-based DC internal rotor motor for low noise; TrueCFM technology maintains airflow at 0.4" static pressure. material: 21 gauge galvanized steel housing, ABS polymeric grille

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPTE1115RK.pdfData sheet

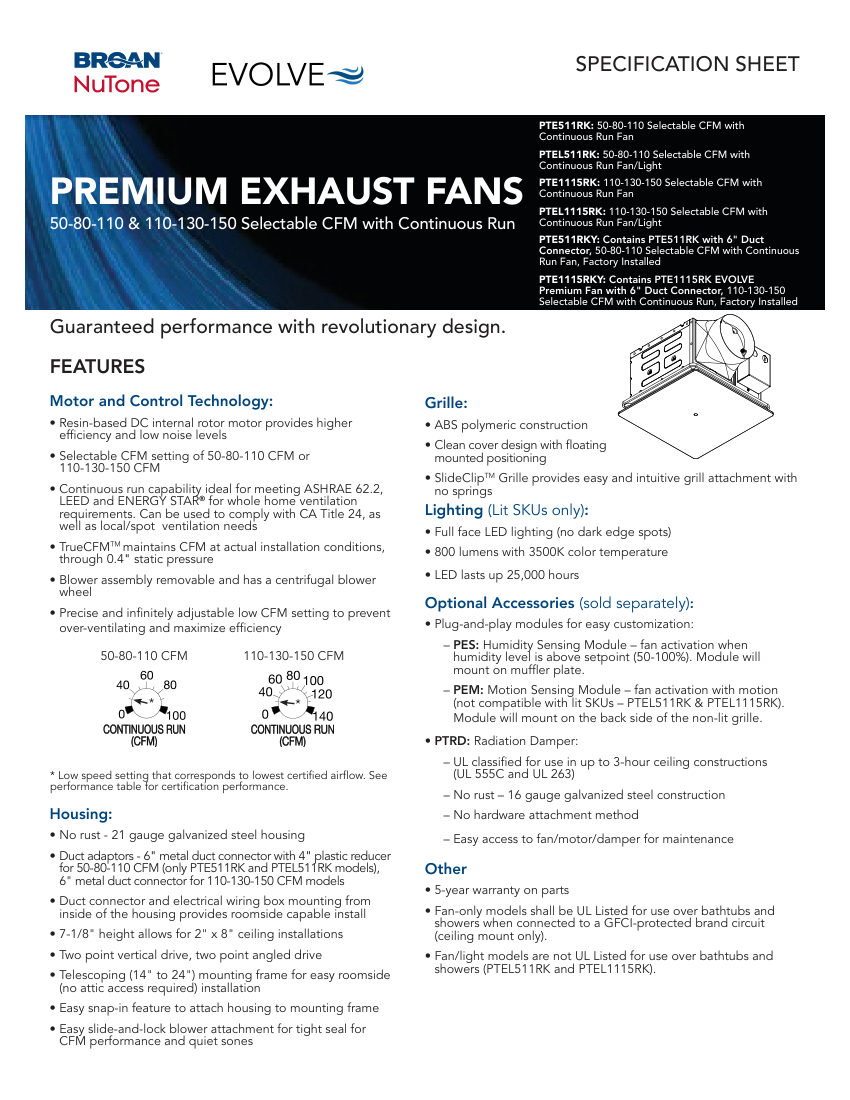

Broan PTE1115RK cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
PTE1115RK
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPTE1115RK
DescriptionBroan Ceiling Exhaust Fan (Exhaust Fan). Model PTE511RK, PTEL511RK, PTE1115RK, PTEL1115RK. Selectable CFM settings: 50-80-110 or 110-130-150; Continuous run capability for whole home ventilation; Resin-based DC internal rotor motor for low noise; TrueCFM technology maintains airflow at 0.4" static pressure. material: 21 gauge galvanized steel housing, ABS polymeric grille
Connection size6" metal duct connector (with 4" plastic reducer for 50-80-110 CFM models)
End connectionDuct connector
Pressure RatingMaintains CFM through 0.4" static pressure
Flow Rate50-80-110 CFM or 110-130-150 CF

Also cataloged as: PTE1115RKY, PTE511RK, PTE511RKY, PTEL1115RK, PTEL511RK
