BroanBroan® 30" UnderQDE30SS

Broan Under Cabinet Range Hood (Range Hood). Model QDE Series. Centrifugal blower with 2-sp rocker controls; Includes (2) 13-watt CFQ13W/G24q fluorescent lights; Sound level 0.8-1.1 Sones at normal speed; Dishwasher-safe full filters. material: Baked-on polyester paint or brushed finish stainless steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFQDE30SS.pdfData sheet

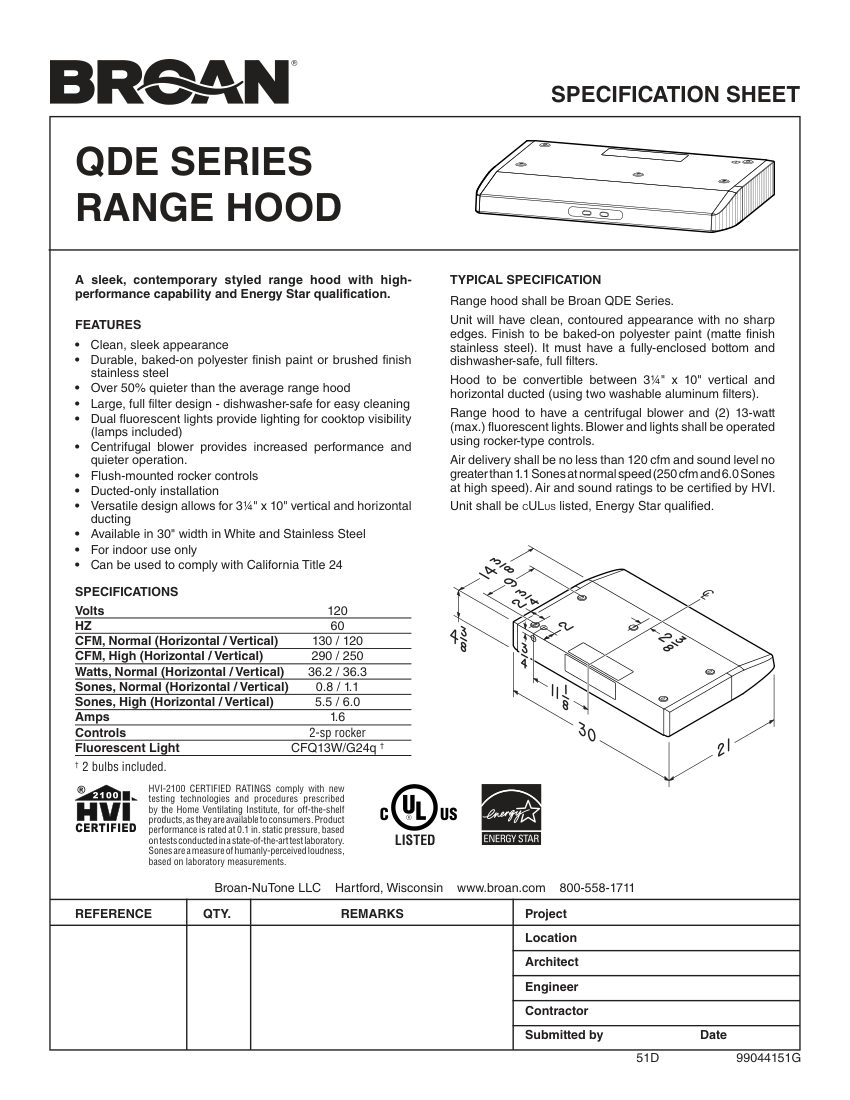

Broan QDE30SS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
QDE30SS
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberQDE30SS
DescriptionBroan Under Cabinet Range Hood (Range Hood). Model QDE Series. Centrifugal blower with 2-sp rocker controls; Includes (2) 13-watt CFQ13W/G24q fluorescent lights; Sound level 0.8-1.1 Sones at normal speed; Dishwasher-safe full filters. material: Baked-on polyester paint or brushed finish stainless steel
Connection size3¼" x 10" vertical and horizontal ducted
End connectionDucted-only
Flow Rate120-250 cfm (Vertical), 130-290 cfm (Horizontal)
FinishMatte finish stainless steel or White
MountingUnder cabinet.

Also cataloged as: QDE30WW
