DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanNuTone® 110 CFM Heater Ventilation Fan with light, 4.0 SonesQT9093WH

Broan Heater Ventilation Fan with Light (Heater Ventilation Fan). Model QT-9093 SERIES. 110 CFM air delivery at 0.1 W.G. static pressure; 4.0 Sones sound level; 1500W heating element with automatic reset thermal protection; Includes 100W bulb and 7W night light bulb. material: Cold rolled steel housing, die-cast zinc grille, polypropylene impeller

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFQT9093WH.pdfData sheet

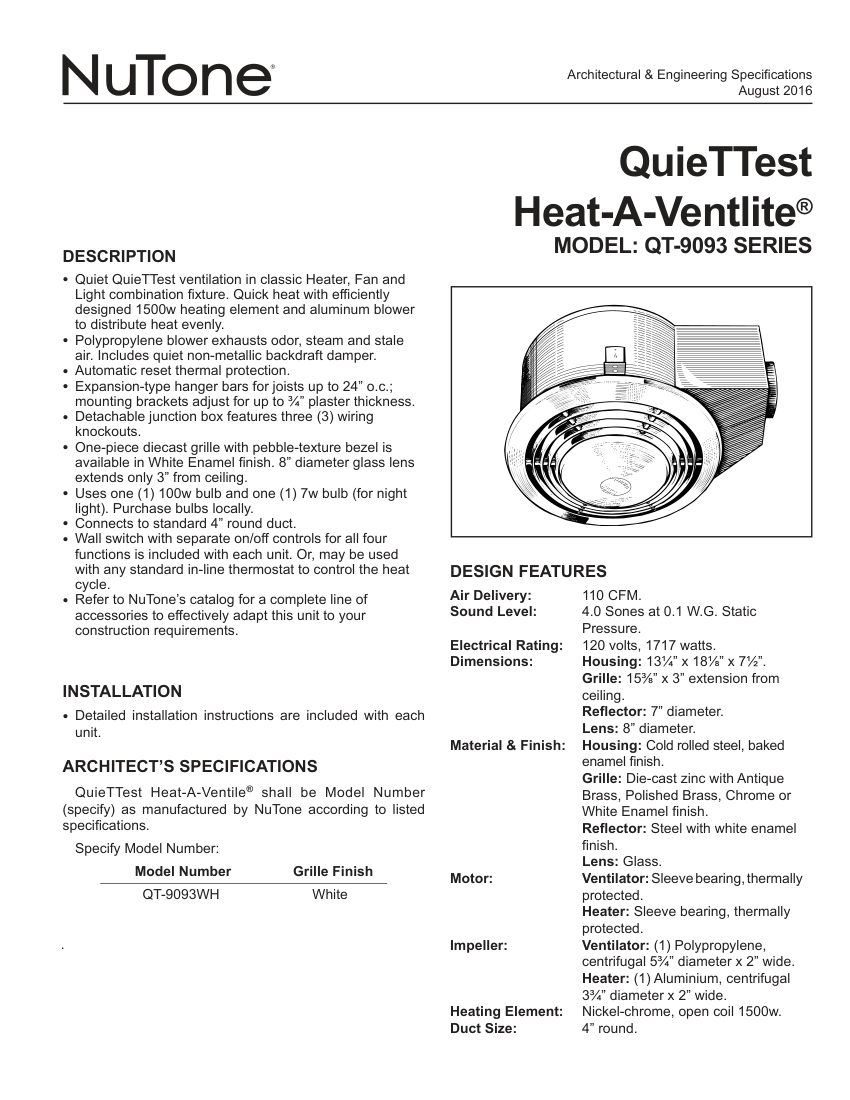

Broan QT9093WH cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
QT9093WH
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberQT9093WH
DescriptionBroan Heater Ventilation Fan with Light (Heater Ventilation Fan). Model QT-9093 SERIES. 110 CFM air delivery at 0.1 W.G. static pressure; 4.0 Sones sound level; 1500W heating element with automatic reset thermal protection; Includes 100W bulb and 7W night light bulb. material: Cold rolled steel housing, die-cast zinc grille, polypropylene impeller
Connection size4" round duct
End connectionStandard 4" round duct
Pressure Rating0.1 W.G. Static Pressure
Flow Rate110 CFM
FinishWhite Enamel (QT-9093WH), Antique Brass, Polished Brass, Chrome.
