BroanQTXEG110SFX

Broan Humidity Sensing Vent Fan (Broan QTXE Series). Model QTXEG110S, QTXEG110SX. 110 CFM air flow at 0.10 Ps static pressure; 0.4 Sones sound level; Automatic humidity sensing with 50%-80% RH set-point; User-adjustable run time of 5 to 60 minutes. material: Galvanized steel housing, polymeric grille

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFQTXEG110SFX.pdfData sheet

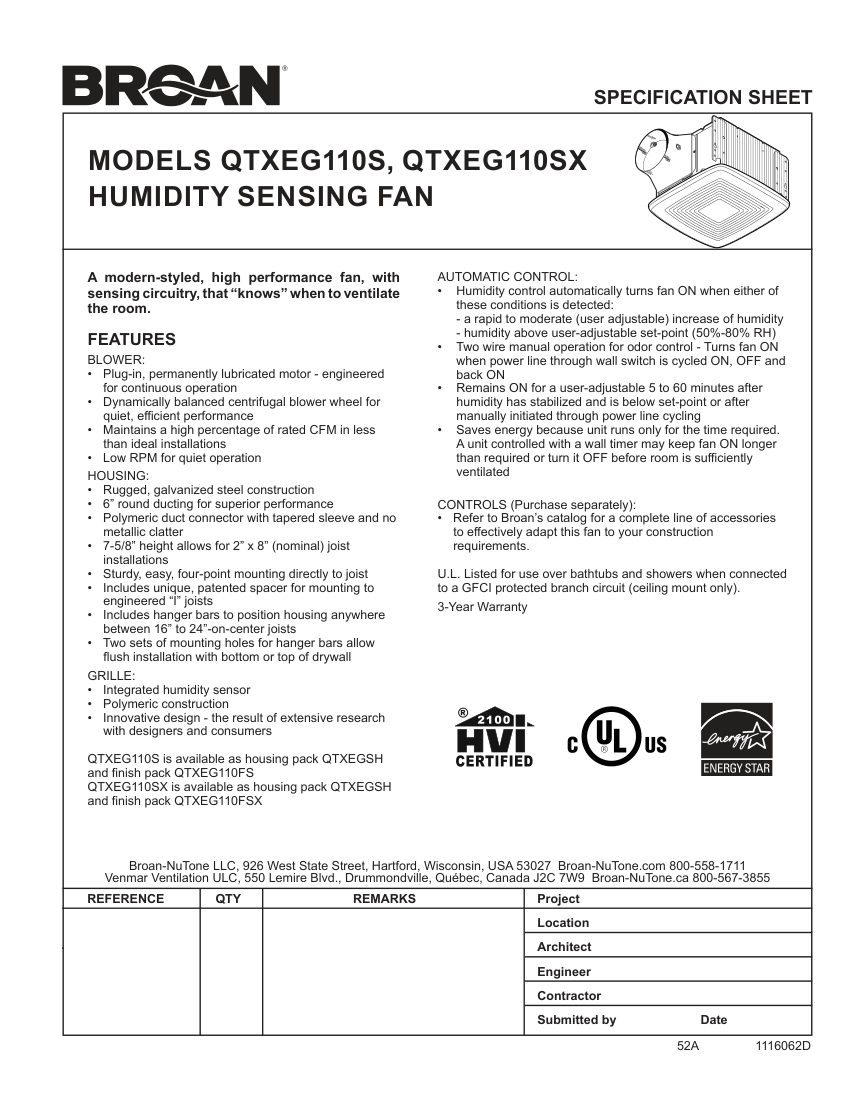

Broan QTXEG110SFX cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
QTXEG110SFX
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberQTXEG110SFX
DescriptionBroan Humidity Sensing Vent Fan (Broan QTXE Series). Model QTXEG110S, QTXEG110SX. 110 CFM air flow at 0.10 Ps static pressure; 0.4 Sones sound level; Automatic humidity sensing with 50%-80% RH set-point; User-adjustable run time of 5 to 60 minutes. material: Galvanized steel housing, polymeric grille
Connection size6" round ducting
End connectionPolymeric duct connector
Pressure Rating0.10 Ps (QTXEG110S), 0.25 Ps (QTXEG110SX)
Flow Rate110 CFM (QTXEG110S), 85 CFM (QTXEG110SX)
FinishWhite Grille.

Also cataloged as: QTXEG110SX
