DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanQTXEN110FLT

Broan Ventilation Fan/Light (Bathroom Ventilation). Model QTXEN080FLT, QTXEN110FLT. Plug-in, permanently lubricated motor for continuous operation; Includes (2) 18W GU24 fluorescent bulbs and 4W C7 night light bulb; Sound level 0.3 Sones (QTXEN080FLT) and 0.7 Sones (QTXEN110FLT); Removable blower assembly with centrifugal wheel. material: Galvanized steel housing, polymeric grille

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFQTXEN110FLT.pdfData sheet

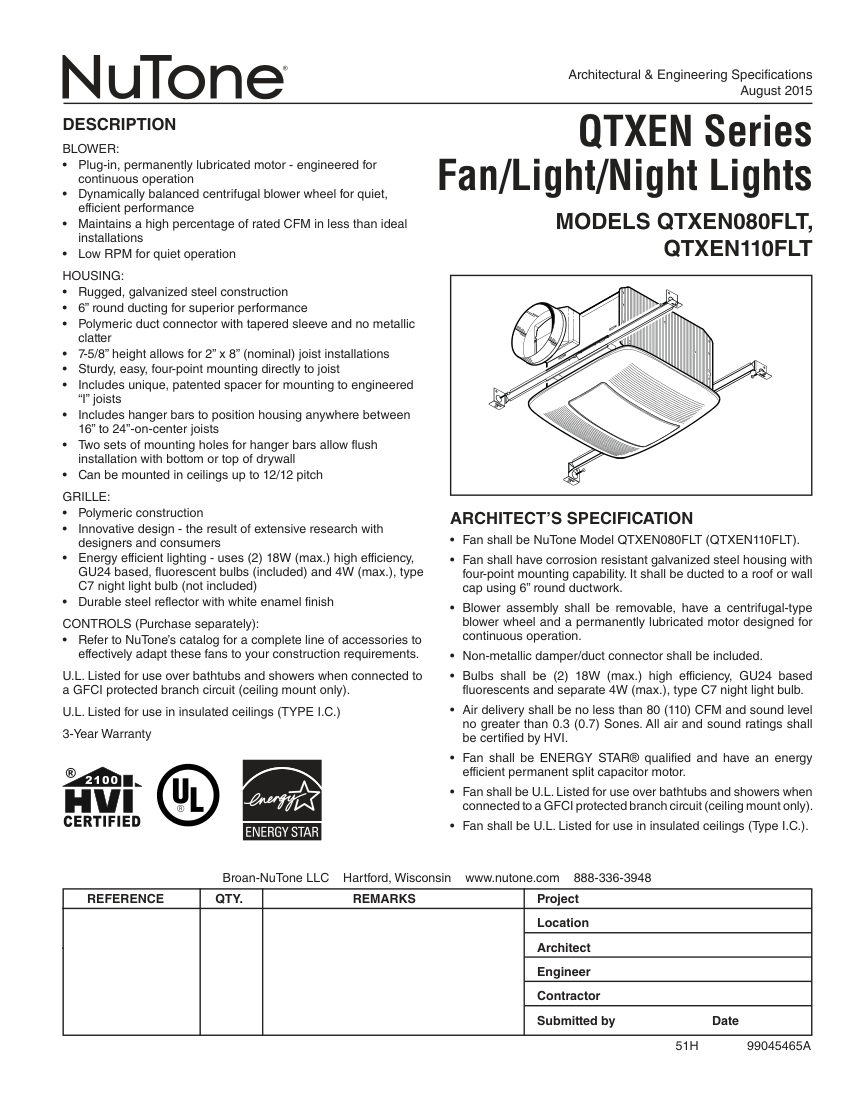

Broan QTXEN110FLT cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
QTXEN110FLT
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberQTXEN110FLT
DescriptionBroan Ventilation Fan/Light (Bathroom Ventilation). Model QTXEN080FLT, QTXEN110FLT. Plug-in, permanently lubricated motor for continuous operation; Includes (2) 18W GU24 fluorescent bulbs and 4W C7 night light bulb; Sound level 0.3 Sones (QTXEN080FLT) and 0.7 Sones (QTXEN110FLT); Removable blower assembly with centrifugal wheel. material: Galvanized steel housing, polymeric grille
Connection size6" round ducting
End connectionPolymeric duct connector with tapered sleeve
Flow Rate80 CFM (QTXEN080FLT), 110 CFM (QTXEN110FLT)
FinishWhite grille, white enamel reflector
MountingFour-poin

Also cataloged as: QTXEN080FLT

  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
