BroanQTXEN110HFLT
Broan Humidity Sensing Exhaust Ventilation Fan with Light (Exhaust Fan). Model QTXEN110HFLT. 110 CFM air flow; 0.7 Sones sound level; Humidity sensing control (50%-80% RH adjustable); Includes (2) 18W GU24 fluorescent bulbs and 4W C7 night light socket. material: Galvanized steel housing, polymeric grille
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- QTXEN110HFLT
- Product type
- Ventilation
- MasterFormat
- 23

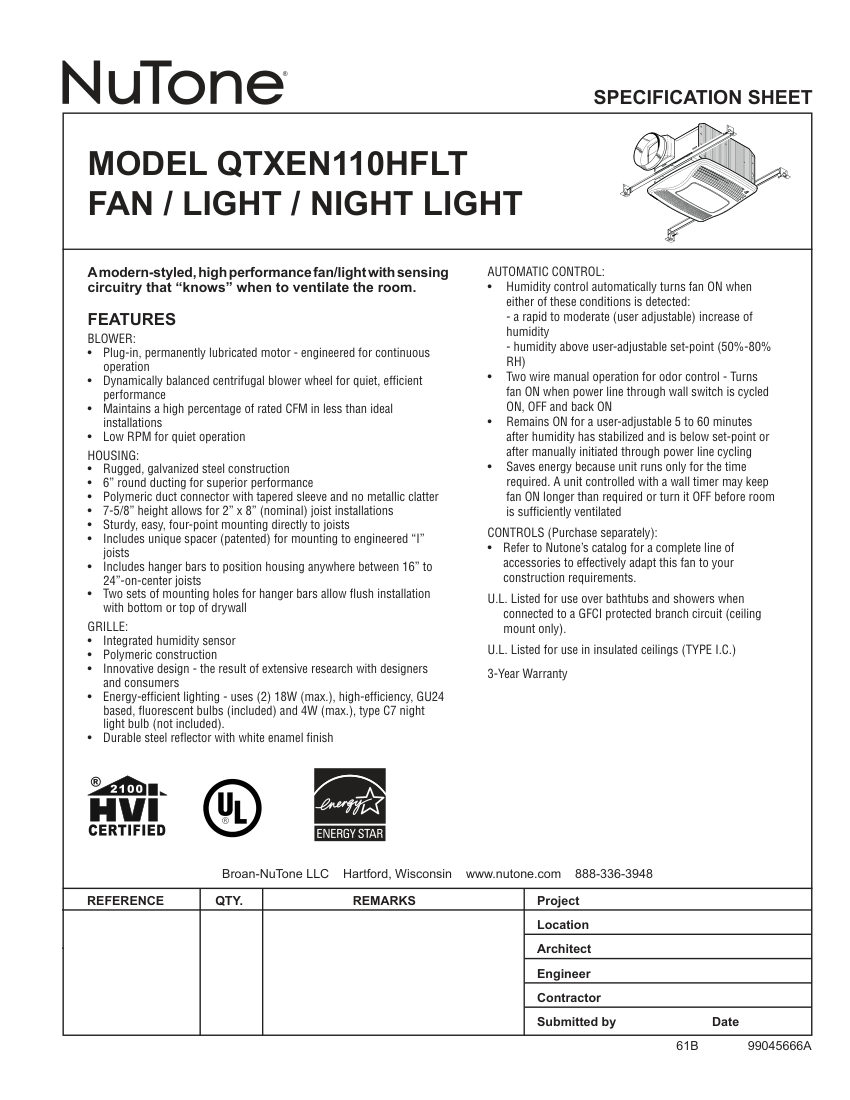

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | QTXEN110HFLT |
|---|---|
| Description | Broan Humidity Sensing Exhaust Ventilation Fan with Light (Exhaust Fan). Model QTXEN110HFLT. 110 CFM air flow; 0.7 Sones sound level; Humidity sensing control (50%-80% RH adjustable); Includes (2) 18W GU24 fluorescent bulbs and 4W C7 night light socket. material: Galvanized steel housing, polymeric grille |
| Connection size | 6" round ducting |
| End connection | Polymeric duct connector |
| Flow Rate | 110 CFM |
| Finish | White |
| Mounting | Ceiling mount, 2" x 8" joists, 16" to 24" on-center. |
