DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanSPKN110RGBLSPKN110RGBL

Broan Ventilation fan with LED light and Bluetooth speaker (Broan-NuTone ChromaComfort). Model SPKN110RGBL. 110 CFM airflow at 1.5 sones; Integrated white and multi-color LED array (900+ lumens); Sensonic Bluetooth speaker concealed behind grille; Includes wireless battery-powered wall control. material: 25-gage galvanized steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFSPKN110RGBL.pdfData sheet

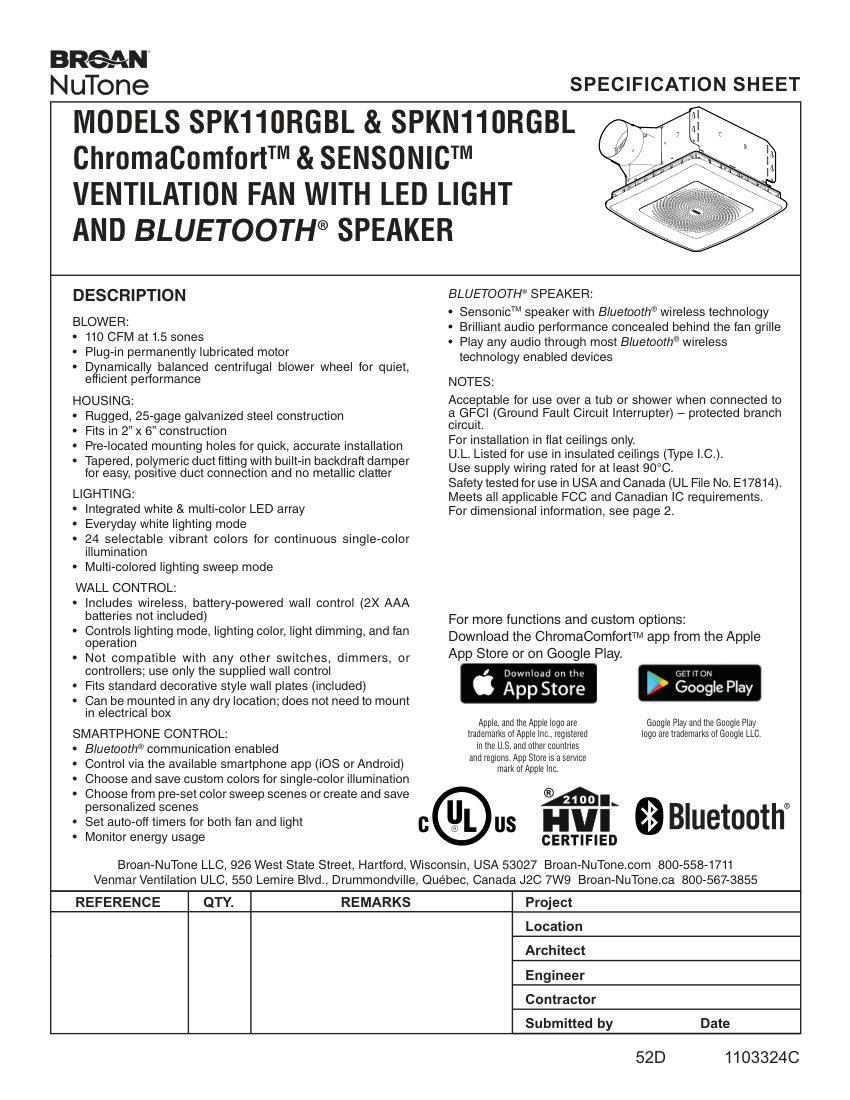

Broan SPKN110RGBL cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
SPKN110RGBL
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberSPKN110RGBL
DescriptionBroan Ventilation fan with LED light and Bluetooth speaker (Broan-NuTone ChromaComfort). Model SPKN110RGBL. 110 CFM airflow at 1.5 sones; Integrated white and multi-color LED array (900+ lumens); Sensonic Bluetooth speaker concealed behind grille; Includes wireless battery-powered wall control. material: 25-gage galvanized steel
Connection size2" x 6" construction
End connectionTapered polymeric duct fitting
Pressure Rating0.1 in H2O (HVI rated)
Flow Rate110 CFM
MountingFlat ceilings only.
