DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanBroanSPKN80RGBL

Broan Bathroom Ventilation Fan with LED Light and Bluetooth Speaker (Ventilation). Model SPKN80RGBL. 80 CFM airflow at 0.8 sones; Integrated LED array with 900+ lumens and 24 selectable colors; Built-in Bluetooth speaker with Sensonic technology; Includes wireless battery-powered wall control. material: 25-gage galvanized steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFSPKN80RGBL.pdfData sheet

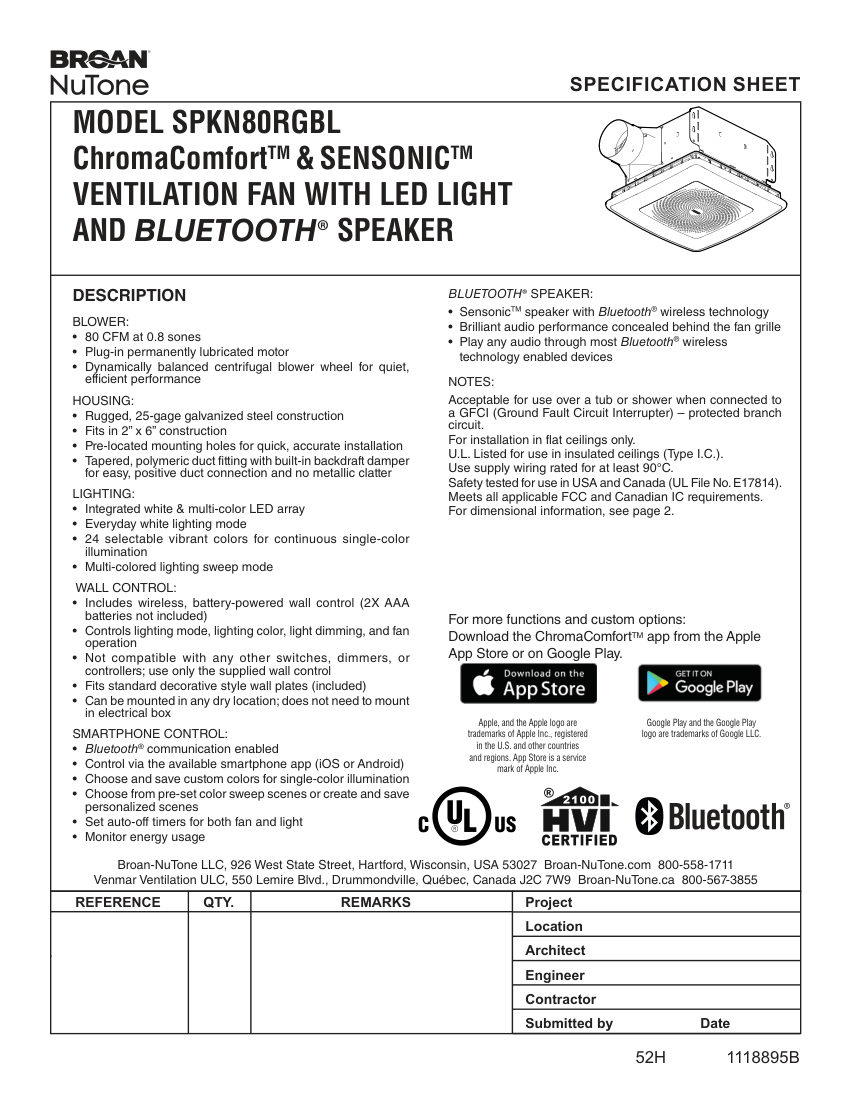

Broan SPKN80RGBL cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
SPKN80RGBL
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberSPKN80RGBL
DescriptionBroan Bathroom Ventilation Fan with LED Light and Bluetooth Speaker (Ventilation). Model SPKN80RGBL. 80 CFM airflow at 0.8 sones; Integrated LED array with 900+ lumens and 24 selectable colors; Built-in Bluetooth speaker with Sensonic technology; Includes wireless battery-powered wall control. material: 25-gage galvanized steel
Connection size2" x 6" construction
End connectionTapered polymeric duct fitting
Pressure Rating0.1 in H2O (HVI rated)
Flow Rate80 CFM
MountingFlat ceilings only.
