BroanBroanV110H65RT

Broan HRV (Heat Recovery Ventilator). Model V110H65RT. SRE of 68% at 0°C and 60% at -25°C; PMSM ECM motors for low power consumption; Integrated electronic airflow measurement with LCD; Recirculation defrost and motorized dampers. material: Galvanized steel door and cabinet, expanded polystyrene insulation shell, polypropylene crossflow core

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFV110H65RT.pdfData sheet

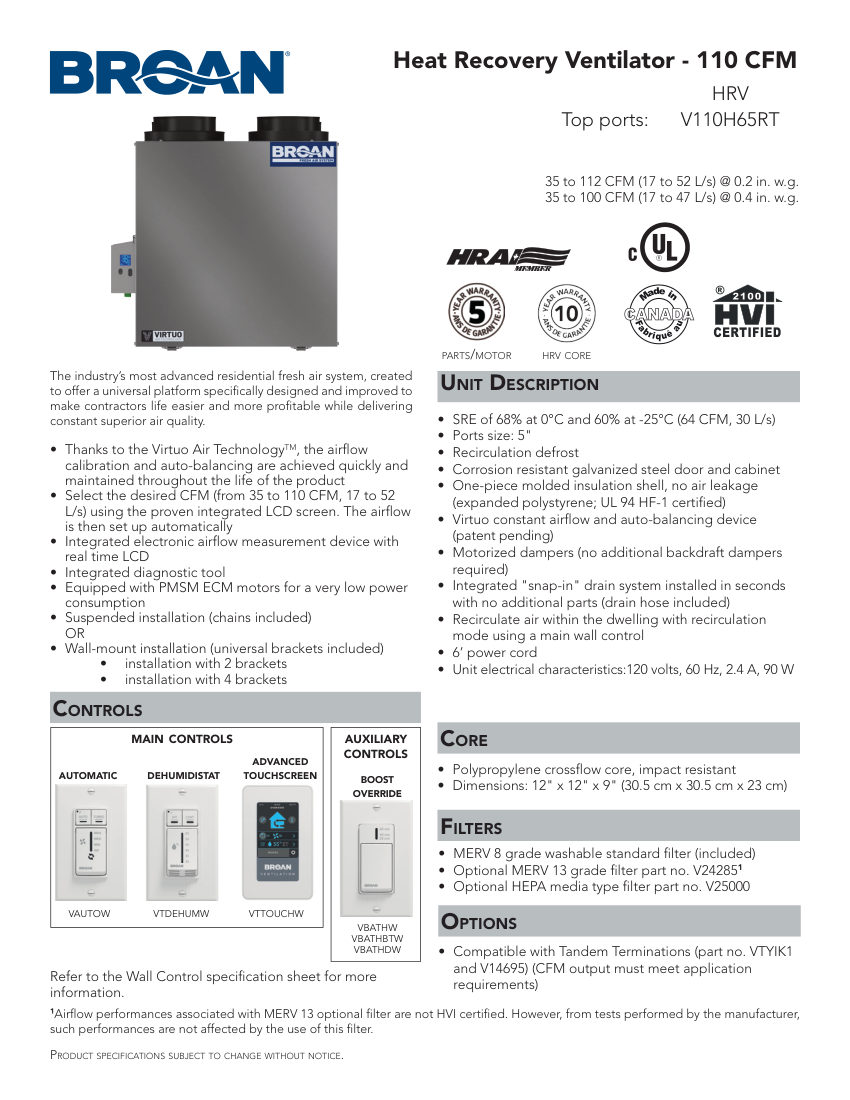

Broan V110H65RT cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
V110H65RT
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberV110H65RT
DescriptionBroan HRV (Heat Recovery Ventilator). Model V110H65RT. SRE of 68% at 0°C and 60% at -25°C; PMSM ECM motors for low power consumption; Integrated electronic airflow measurement with LCD; Recirculation defrost and motorized dampers. material: Galvanized steel door and cabinet, expanded polystyrene insulation shell, polypropylene crossflow core
Connection size5"
End connectionTop ports
Flow Rate35 to 112 CFM (17 to 52 L/s) @ 0.2 in. w.g.
MountingSuspended or Wall-mount
Dimensions12" x 12" x 9" (30.5 cm x 30.5 cm x 23 cm).
