BroanBroanV130H80RT
Broan HRV (Heat Recovery Ventilator). Model V130H80RT. SRE of 82% at 0°C (36 CFM)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- V130H80RT
- Product type
- Ventilation
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | V130H80RT |
|---|---|
| Description | Broan HRV (Heat Recovery Ventilator). Model V130H80RT. SRE of 82% at 0°C (36 CFM) |
| Fan Efficacy | 2.2 CFM/Watt; PMSM ECM motors; Integrated LCD screen for airflow calibration. material: Galvanized steel door and cabinet, expanded polystyrene insulation shell, polypropylene crossflow core |
| Connection size | 5" ports |
| End connection | Top ports |
| Flow Rate | 35 to 131 CFM @ 0.2 in. w.g.; 35 to 119 CFM @ 0.4 in. w.g. |
| Mounting | Suspended or wall-mount |
| Dimensions | 12" x 12" x 9" (30.5 cm x 30.5 cm x 23 cm). |

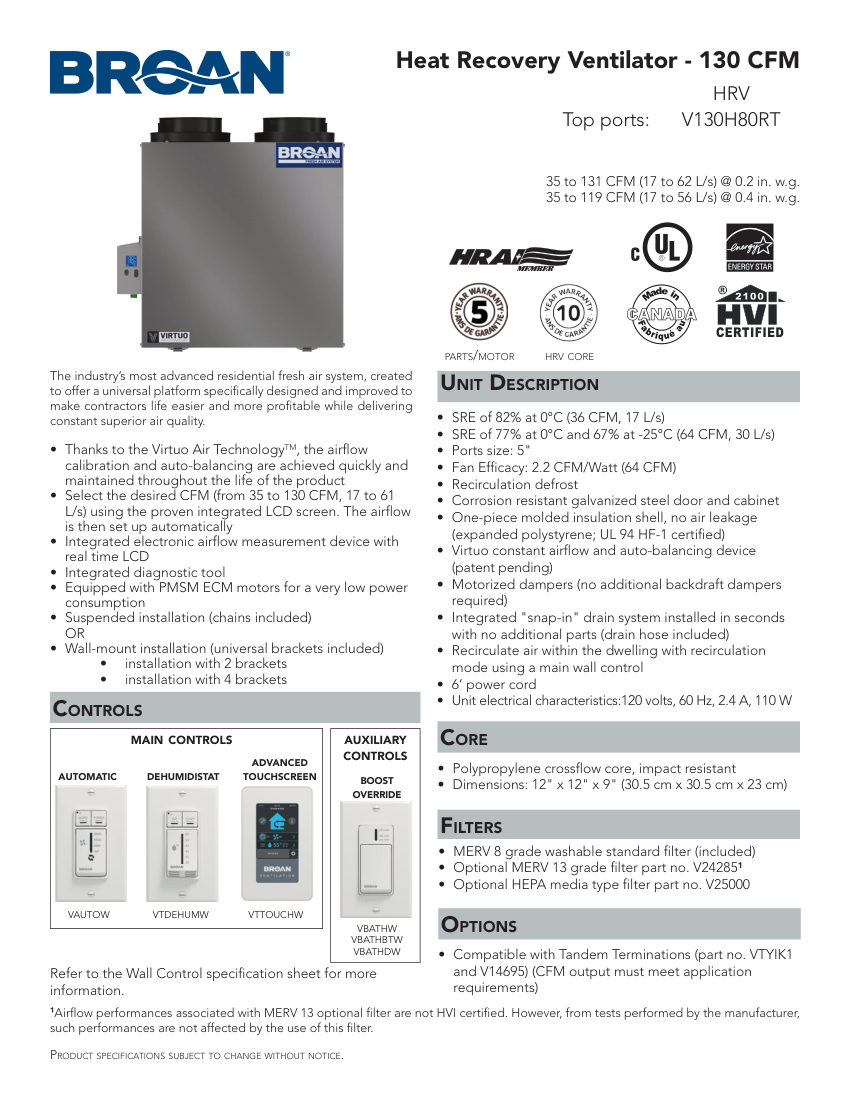

- Official cut sheet, indexed
