BroanBroanV230H75RS

Broan HRV (Heat Recovery Ventilator). Model V230H75RS. SRE of 75% at 0°C and 67% at -25°C; PMSM ECM motors for energy efficient operation; Integrated electronic airflow measurement with LCD; Virtuo constant airflow and auto-balancing device. material: Galvanized steel door and cabinet, expanded polystyrene insulation shell, polypropylene core

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFV230H75RS.pdfData sheet

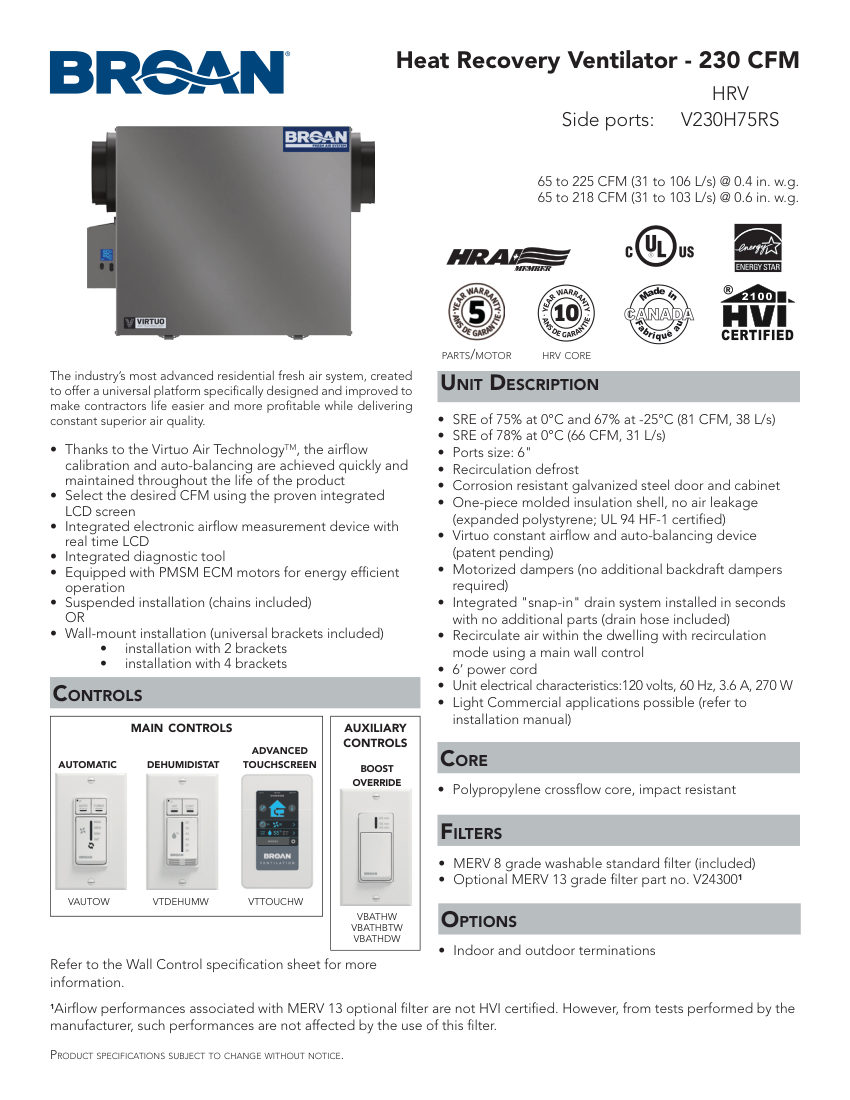

Broan V230H75RS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
V230H75RS
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberV230H75RS
DescriptionBroan HRV (Heat Recovery Ventilator). Model V230H75RS. SRE of 75% at 0°C and 67% at -25°C; PMSM ECM motors for energy efficient operation; Integrated electronic airflow measurement with LCD; Virtuo constant airflow and auto-balancing device. material: Galvanized steel door and cabinet, expanded polystyrene insulation shell, polypropylene core
Connection size6" ports
End connectionSide ports
Flow Rate65 to 225 CFM (31 to 106 L/s) @ 0.4 in. w.g.
MountingSuspended or Wall-mount
ComplianceUL 94 HF-1 certified insulation.
