DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanVBNLB130SS

Broan Under-Cabinet Range Hood (Range Hood). Model VBNLB130SS. 3-speed pushbutton control with LCD display; Includes 2 hybrid baffle grease filters; 3-level LED lighting included; Heat Sentry and Filter Clean Reminder features. material: Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFVBNLB130SS.pdfData sheet

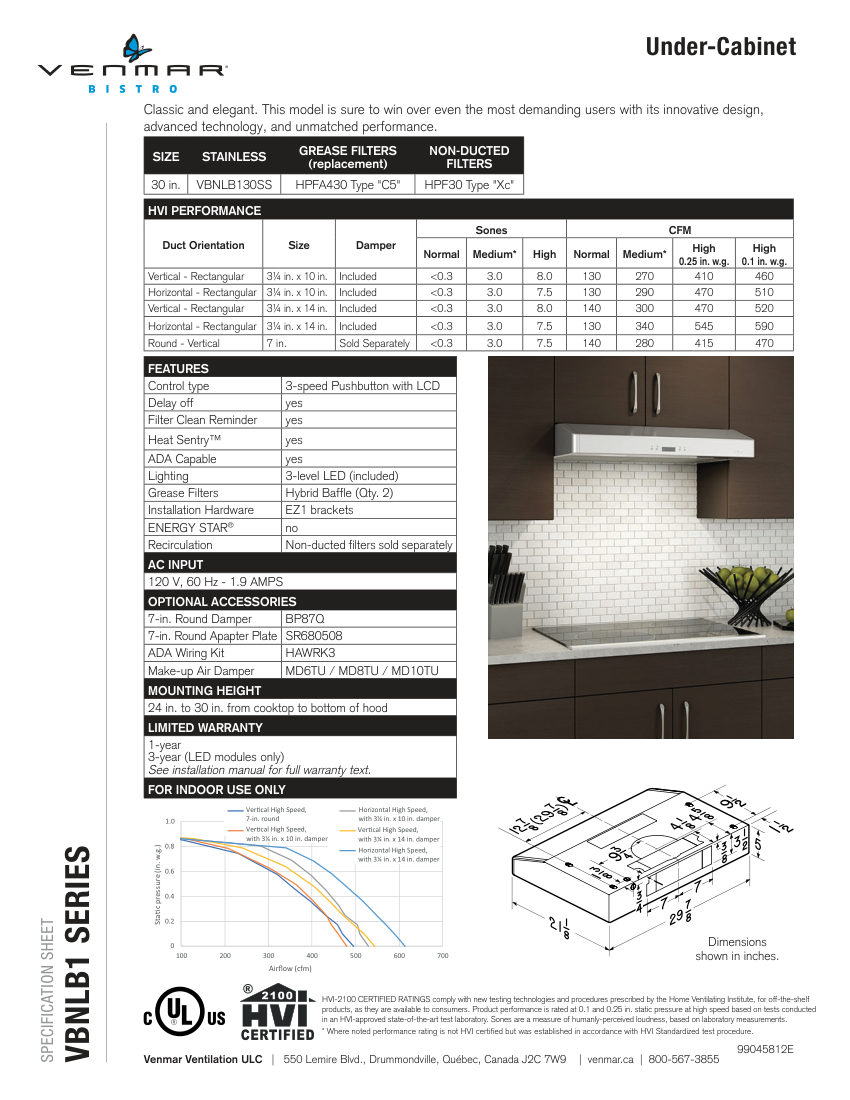

Broan VBNLB130SS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
VBNLB130SS
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberVBNLB130SS
DescriptionBroan Under-Cabinet Range Hood (Range Hood). Model VBNLB130SS. 3-speed pushbutton control with LCD display; Includes 2 hybrid baffle grease filters; 3-level LED lighting included; Heat Sentry and Filter Clean Reminder features. material: Stainless Steel
Connection size3.25 in. x 10 in. or 3.25 in. x 14 in. rectangular; 7 in. round
End connectionDucted or Non-Ducted (Recirculating)
Flow RateUp to 590 CFM (Horizontal, 3.25x14 in. duct)
FinishStainless Steel
MountingUnder-Cabinet (24-30 in. from cooktop).

Also cataloged as: VBNLB130WH
