BroanULTRA GREEN ZB Series 110 CFM MultiZB110ML1
Broan Ceiling Ventilation Fan with Light (Ventilation). Model ZB110ML1. 110 CFM airflow at 0.25" static pressure; 18 Watt integrated dimmable LED light; DC motor with multi-speed capability; Sound level <0.3 Sones. connectionSize: 6" Duct
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- ZB110ML1
- Product type
- Ventilation
- MasterFormat
- 23

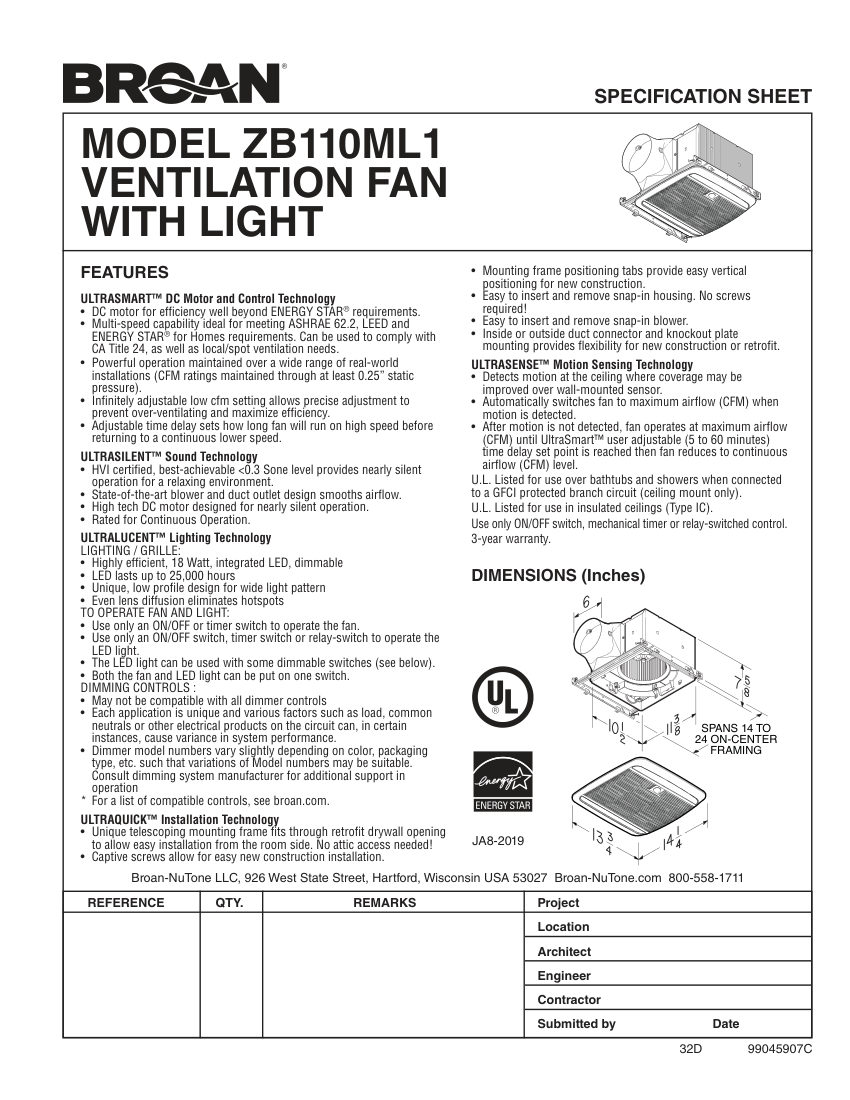

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | ZB110ML1 |
|---|---|
| Description | Broan Ceiling Ventilation Fan with Light (Ventilation). Model ZB110ML1. 110 CFM airflow at 0.25" static pressure; 18 Watt integrated dimmable LED light; DC motor with multi-speed capability; Sound level <0.3 Sones. connectionSize: 6" Duct |
| End connection | Inside or outside duct connector |
| Pressure Rating | 0.25" static pressure |
| Flow Rate | 110 CFM |
| Mounting | Ceiling mount, spans 14 to 24 on-center framing |
| Compliance | HVI certified, UL Listed, ENERGY STAR, ASHRAE 62.2, CA Title 24. |
