Legrand0 10V Pir Straight Mt Sensor Ble 120 480V 40Ft Lens Black

Legrand 0-10V PIR Straight Mount Sensor (Wattstopper FSP-3x1B). Model FSP-321B-S-L7-B. Controls 0-10 VDC LED drivers and dimming ballasts; IP66 rated for wet and cold locations; Adjustable via iOS or Android Sensor Configuration App; Load rating up to 1200 W @ 277 VAC. material: Polycarbonate

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF0-10V-Pir-Straight-Mt-Sensor-Ble-120-480V-40Ft-Lens-Black.pdfData sheet

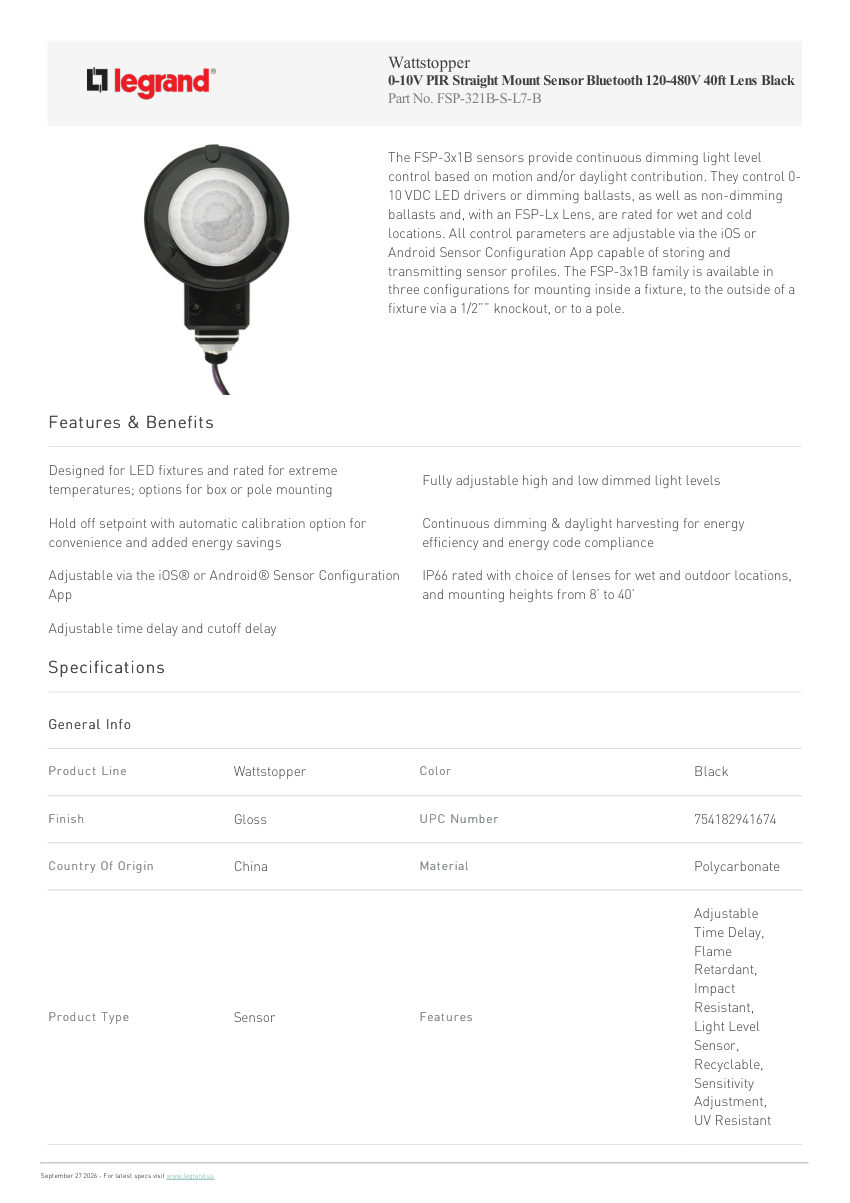

Legrand 0 10V Pir Straight Mt Sensor Ble 120 480V 40Ft Lens Black cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
0 10V Pir Straight Mt Sensor Ble 120 480V 40Ft Lens Black
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog number0 10V Pir Straight Mt Sensor Ble 120 480V 40Ft Lens Black
DescriptionLegrand 0-10V PIR Straight Mount Sensor (Wattstopper FSP-3x1B). Model FSP-321B-S-L7-B. Controls 0-10 VDC LED drivers and dimming ballasts; IP66 rated for wet and cold locations; Adjustable via iOS or Android Sensor Configuration App; Load rating up to 1200 W @ 277 VAC. material: Polycarbonate
FinishGloss Black
MountingStraight Mount
Dimensions6.024 in W x 3.667 in D x 2.765 in H
ComplianceUL, cUL, CE, TUV, RoHS, IP66
Voltage120-480VAC.
