Legrand Touchscreen Injector (Wattstopper DLM). Model LMTI-100-120, LMTI-100-277. Provides Class 2 power to up to two LMEQ-41 touchscreens via PoE; Converts In-Room Bus (IRB) protocol to Power over Ethernet (PoE); Features 2 PoE output ports (IEEE802.3af) and 2 IRB ports (24VDC @ 8mA); Output voltage is 48V @ 36.3W (120V model) or 50V @ 41.1W (277V model). endConnection: PoE Ethernet, DLM Cat 5e RJ45

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFBCS-WS-CS-LMTI-100-29173r3.pdfData sheet

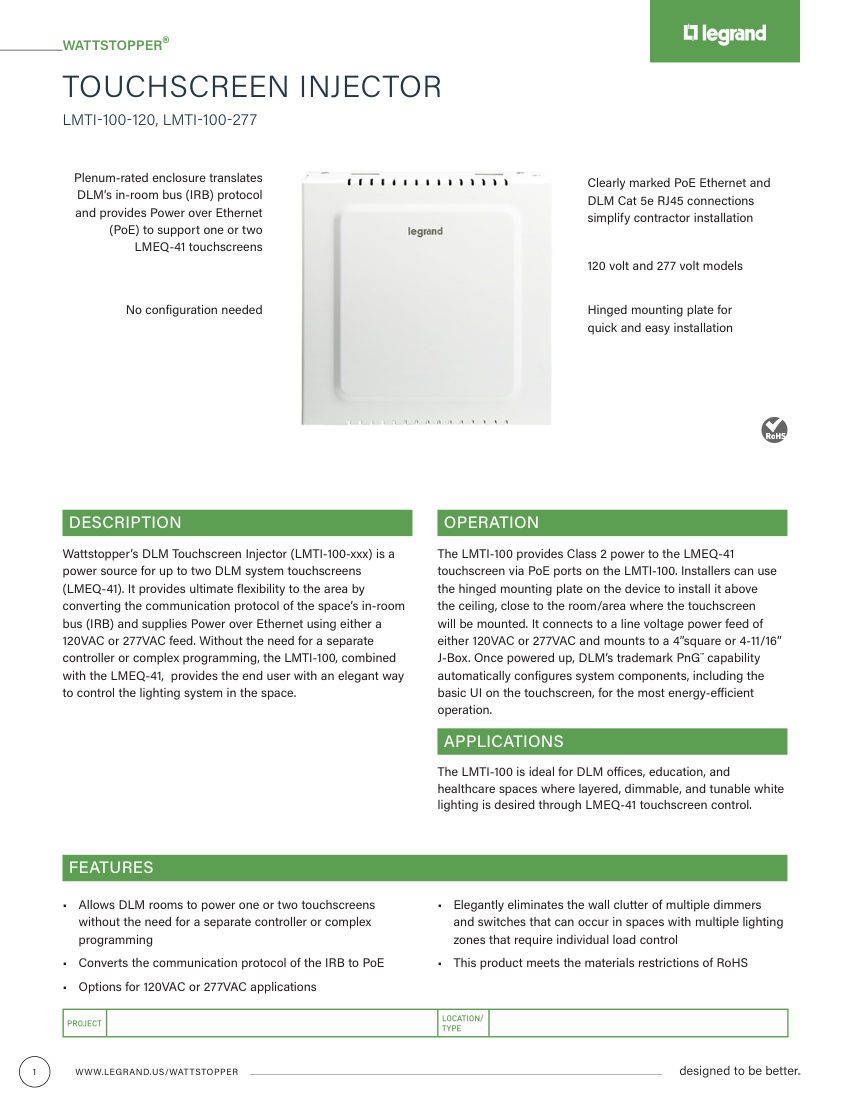

Legrand BCS-WS-CS-LMTI-100-29173r3 cut sheet — first page
