LegrandEWS PS PlugLoadControllableDecoratorReceptacles26252CH

Legrand Plug Load Controllable Receptacle (Electrical Receptacles). Model 26252CH, 26352CH, 26252CD, 26352CD, TR26262CH, TR26362CH, TR26262CD, TR26362CD. Maximum working voltage 125V; Dielectric withstand voltage 2000V minimum; Operating temperature range -40°C to +60°C; Flammability rating UL94 V2. material: Nylon face, PVC back body, Brass contacts, Zinc-Plated Steel strap

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF26252CH.pdfData sheet

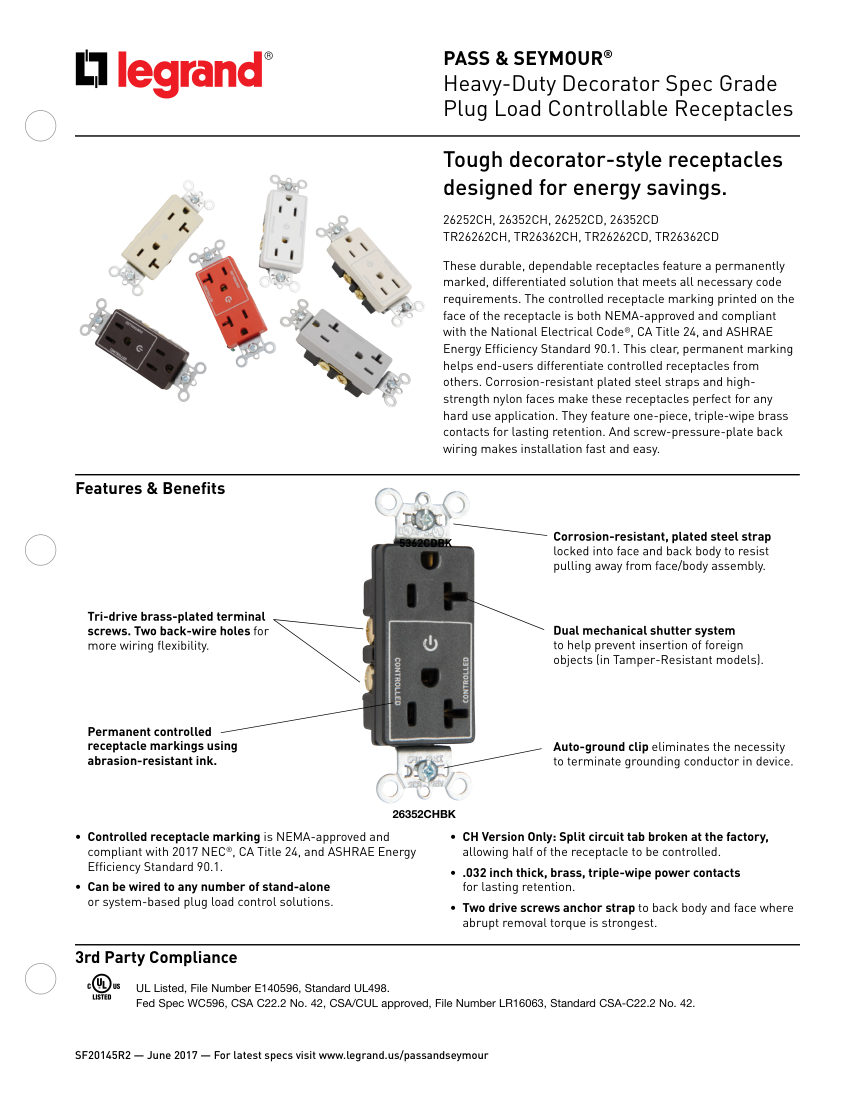

Legrand 26252CH cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
26252CH
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog number26252CH
DescriptionLegrand Plug Load Controllable Receptacle (Electrical Receptacles). Model 26252CH, 26352CH, 26252CD, 26352CD, TR26262CH, TR26362CH, TR26262CD, TR26362CD. Maximum working voltage 125V; Dielectric withstand voltage 2000V minimum; Operating temperature range -40°C to +60°C; Flammability rating UL94 V2. material: Nylon face, PVC back body, Brass contacts, Zinc-Plated Steel strap
Connection size#14 AWG - #10 AWG copper conductor
End connectionScrew-pressure-plate back wiring
FinishBrass-plated terminal screws
MountingCorrosion-resistant plated steel strap
Dimensions3.281" x 2.635" x 1.

Also cataloged as: 26252CHI, 26252CHW, 26252CHGRY, 26252CHBK, 26252CHLA, 26252CHGN, 26252CH-I, 26252CH-W, 26252CH-GRY, 26252CH-BK, 26252CH-LA
