DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

Legrand27347r2_DT-355_cutsheet

Legrand Dual Technology Line Voltage Ceiling Sensor (Wattstopper). Model DT-355. Combines passive infrared (PIR) and ultrasonic technologies; Provides 360 degrees of coverage; Time delays selectable via DIP switches: 5, 10, 15, 20, or 30 minutes; Ultrasonic frequency of 40kHz. endConnection: Terminal wiring

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF27347r2_DT-355_cutsheet.pdfData sheet

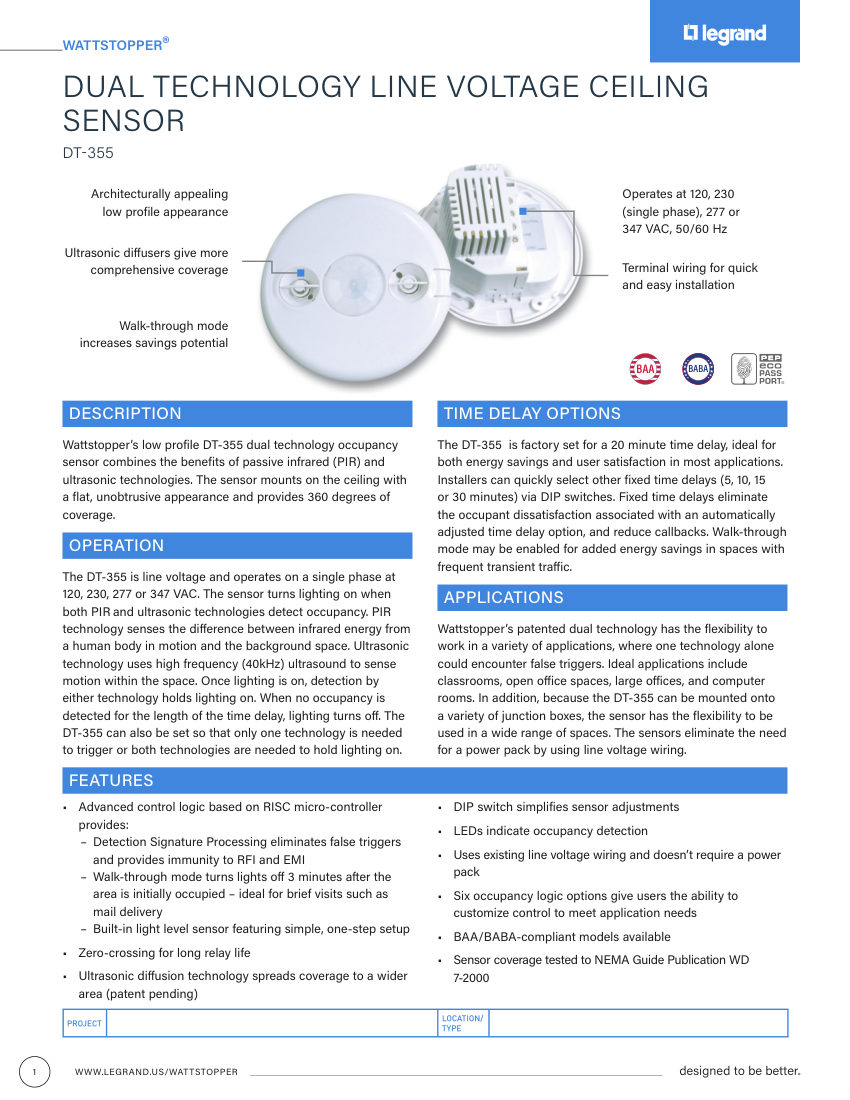

Legrand 27347r2_DT-355_cutsheet cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
27347r2_DT-355_cutsheet
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog number27347r2_DT-355_cutsheet
DescriptionLegrand Dual Technology Line Voltage Ceiling Sensor (Wattstopper). Model DT-355. Combines passive infrared (PIR) and ultrasonic technologies; Provides 360 degrees of coverage; Time delays selectable via DIP switches: 5, 10, 15, 20, or 30 minutes; Ultrasonic frequency of 40kHz. endConnection: Terminal wiring
MountingCeiling; 4 square junction box with double gang mudring; 4 inch octagonal junction box
Dimensions4.50" diameter x 1.45" deep (114.3mm x 25.9mm)
ComplianceUL and cUL listed; BAA/BABA-compliant models available; NEMA Guide Publication WD 7-2000
Voltage120/230 (single phase
