DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

LegrandEWS PS CS StraightBladeReceptacle 3421EWS-PS-CS-StraightBladeReceptacle-3421

Legrand Straight Blade Receptacle (Electrical Receptacles). Model TR5262, TR5362. Tamper-resistant with dual mechanical shutter system; Rated 15A (TR5262) or 20A (TR5362) at 125V; Hard use construction grade with corrosion-resistant plated steel strap; Triple-wipe power contacts made of .032 inch thick brass. material: Nylon face, PVC back body, Brass contacts, Zinc-plated steel strap

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEWS-PS-CS-StraightBladeReceptacle-3421.pdfData sheet

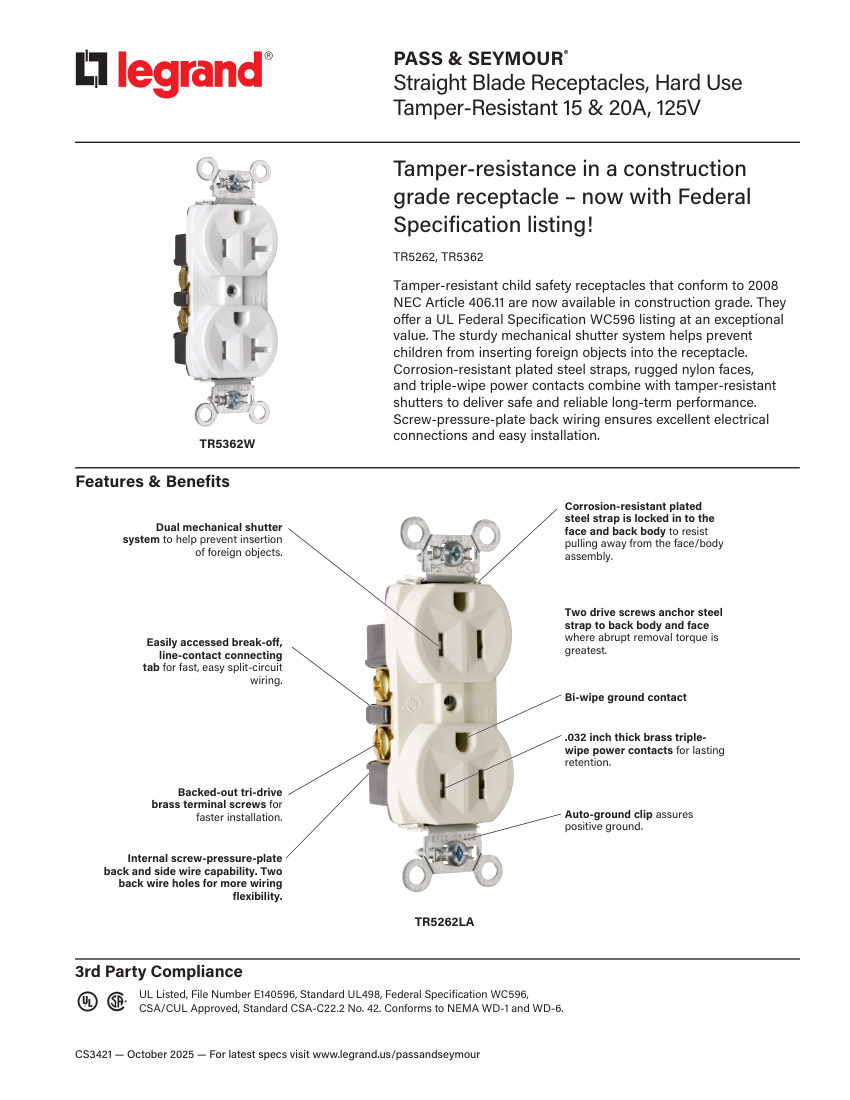

Legrand EWS-PS-CS-StraightBladeReceptacle-3421 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
EWS-PS-CS-StraightBladeReceptacle-3421
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEWS-PS-CS-StraightBladeReceptacle-3421
DescriptionLegrand Straight Blade Receptacle (Electrical Receptacles). Model TR5262, TR5362. Tamper-resistant with dual mechanical shutter system; Rated 15A (TR5262) or 20A (TR5362) at 125V; Hard use construction grade with corrosion-resistant plated steel strap; Triple-wipe power contacts made of .032 inch thick brass. material: Nylon face, PVC back body, Brass contacts, Zinc-plated steel strap
Connection size#14 - #10 AWG copper conductor
End connectionScrew-pressure-plate back and side wire
FinishNylon face
MountingSteel strap with two drive screws
Dimensions1.322" x 1.104" x 2.635" (appr

Also cataloged as: EWS-PS-CS-StraightBladeReceptaclesExtraHeavyDuty-3403, EWS-PS-CS-StraightBladeReceptaclesExtraHeavyDuty-3404
