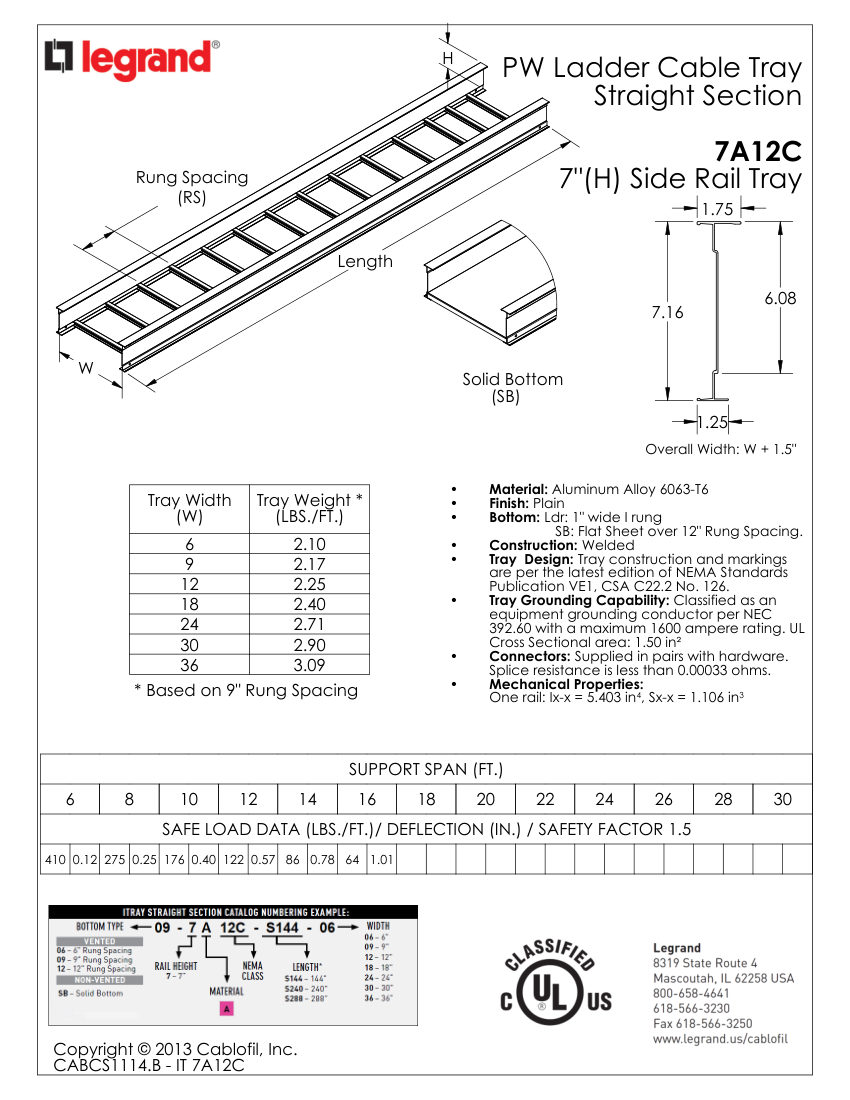

Legrand1114
Legrand Ladder Cable Tray Straight Section (Cable Tray). Model CS 1114 13 CB. Grounding capability: 1600 ampere rating
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Legrand
- Catalog no.
- 1114
- Product type
- Electrical
- MasterFormat
- 26
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 1114 |
|---|---|
| Description | Legrand Ladder Cable Tray Straight Section (Cable Tray). Model CS 1114 13 CB. Grounding capability: 1600 ampere rating |
| UL Cross Sectional area | 1.50 in² |
| Splice resistance | less than 0.00033 ohms |
| Construction | Welded. material: Aluminum Alloy 6063-T6 |
| Finish | Plain |
| Dimensions | Widths: 6, 9, 12, 18, 24, 30, 36 inches |
| Side Rail Height | 7 inches |
| Compliance | NEMA VE1, CSA C22.2 No. 126, NEC 392.60. |
