Legrand Connector Splice (Ladder Cable Tray). Model CS 1140 13 CB. Torque specification: 19 ft/lbs; Meets cable tray bonding requirements without jumpers when used with ITRAY straights; Kit includes one inside and outside plate plus hardware

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1140.pdfData sheet

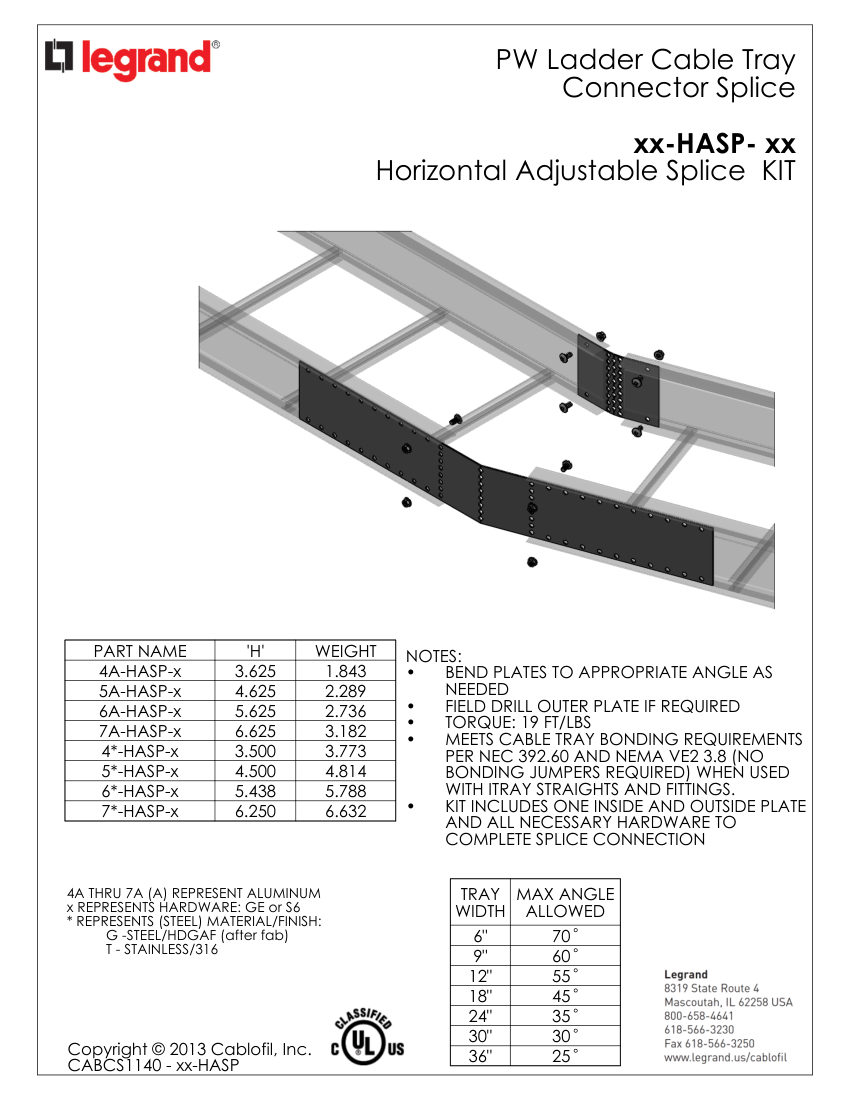

Legrand 1140 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
1140
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog number1140
DescriptionLegrand Connector Splice (Ladder Cable Tray). Model CS 1140 13 CB. Torque specification: 19 ft/lbs; Meets cable tray bonding requirements without jumpers when used with ITRAY straights; Kit includes one inside and outside plate plus hardware
Max angle varies by width70 degrees for 6 inch to 25 degrees for 36 inch. material: Aluminum, Steel, Stainless 316
Connection size4A-7A, 4*-7*
End connectionHorizontal Adjustable Splice
FinishHDGAF, 316
MountingField drill outer plate if required
DimensionsH: 3.500-6.625.
