DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

Legrand1190

Legrand Ladder Cable Tray Straight Section (Cable Tray). Model CS 1190 14 CB. NEMA Class 20C; Pultruded Glass Fiber Reinforced Polyester; 1" Square Tube Rungs; 12" Rung Spacing. material: Glass Fiber Reinforced Fire Retardant Polyester Resin

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1190.pdfData sheet

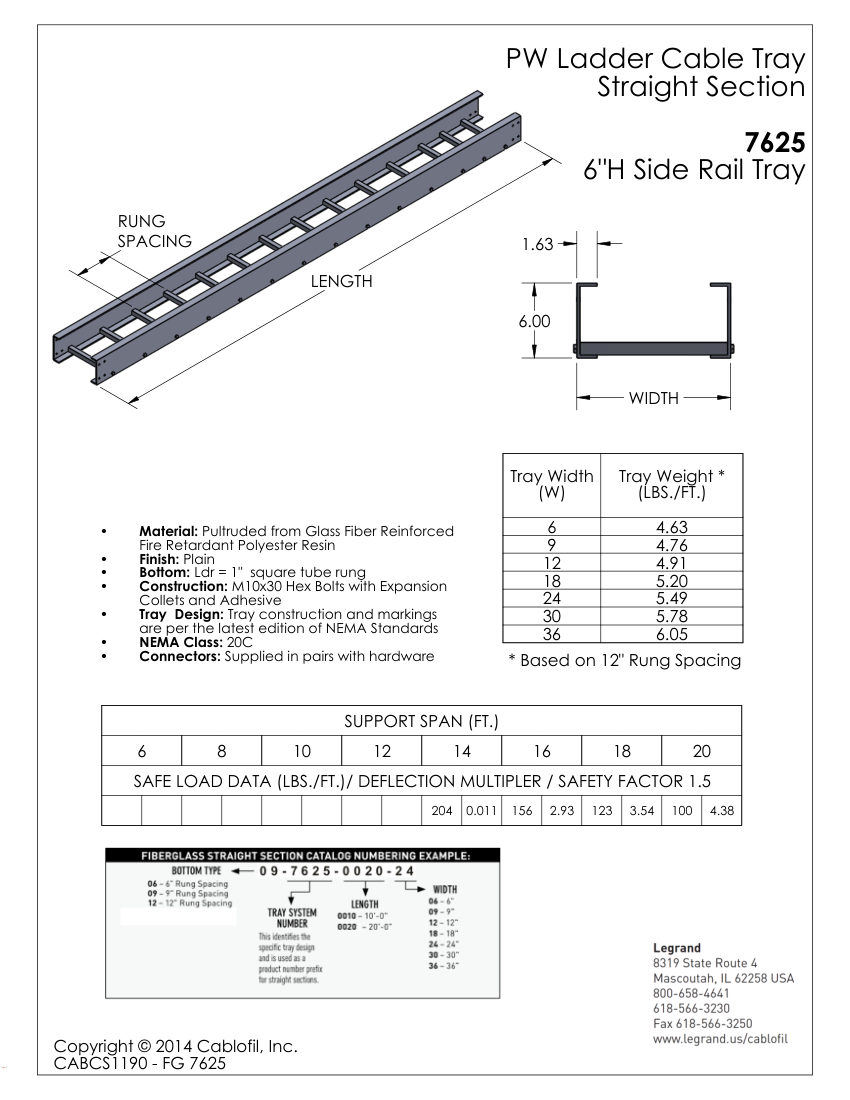

Legrand 1190 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
1190
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog number1190
DescriptionLegrand Ladder Cable Tray Straight Section (Cable Tray). Model CS 1190 14 CB. NEMA Class 20C; Pultruded Glass Fiber Reinforced Polyester; 1" Square Tube Rungs; 12" Rung Spacing. material: Glass Fiber Reinforced Fire Retardant Polyester Resin
FinishPlain
MountingM10x30 Hex Bolts with Expansion Collets and Adhesive
Dimensions6"H Side Rail, 1" square tube rung, 12" Rung Spacing
ComplianceNEMA Class 20C.
