Legrand1308252_AdorneKeypad_cutsheet

Legrand Low-voltage keypad (Vantage). Model KST11AD / KST13AD / KST16AD. Capacitive-touch style with 1, 3, or 6 button touch points; RGB LED color change indication for scene state; Built-in ambient light sensor for automatic backlight intensity; Proprietary 2-wire Vantage Station Bus connection. endConnection: 2-wire Vantage Station Bus pigtail

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1308252_AdorneKeypad_cutsheet.pdfData sheet

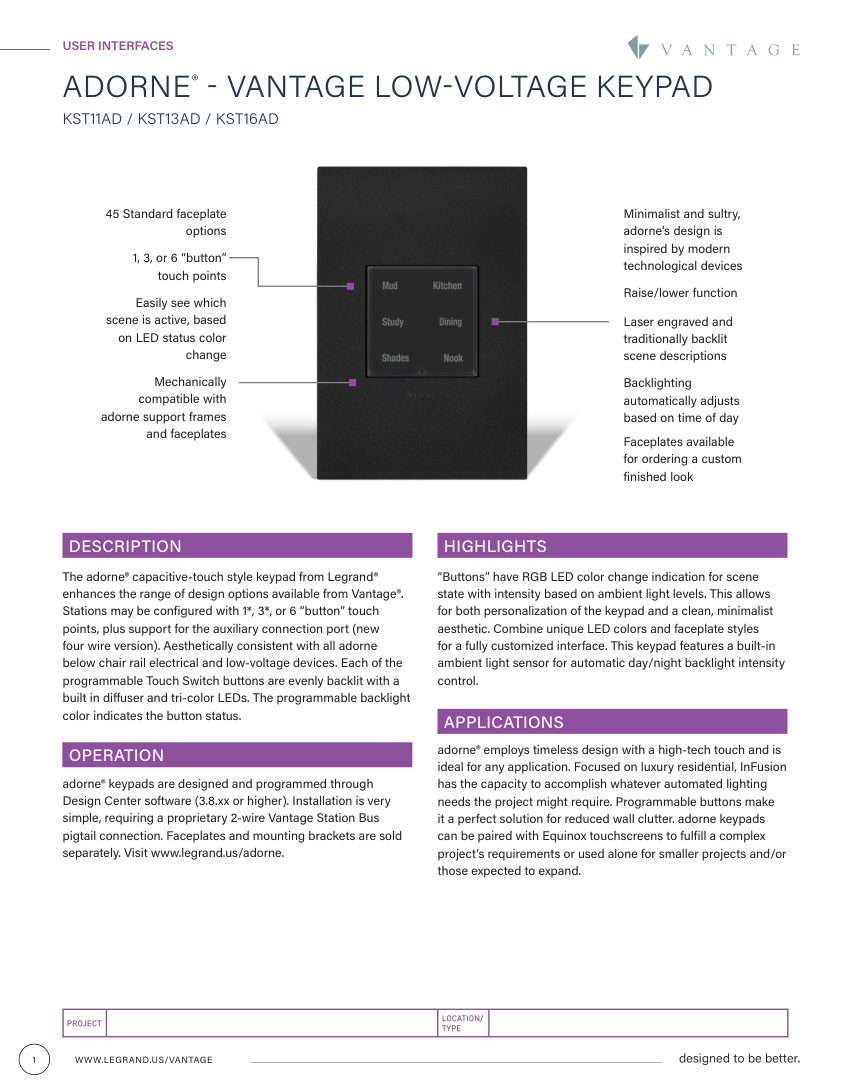

Legrand 1308252_AdorneKeypad_cutsheet cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
1308252_AdorneKeypad_cutsheet
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog number1308252_AdorneKeypad_cutsheet
DescriptionLegrand Low-voltage keypad (Vantage). Model KST11AD / KST13AD / KST16AD. Capacitive-touch style with 1, 3, or 6 button touch points; RGB LED color change indication for scene state; Built-in ambient light sensor for automatic backlight intensity; Proprietary 2-wire Vantage Station Bus connection. endConnection: 2-wire Vantage Station Bus pigtail
Finish45 Standard faceplate options
MountingMechanically compatible with adorne support frames
Dimensions0.84" (21mm) height, 3.45" (87.6mm) width
Voltage12VDC.
