Legrand15A 125V Half Controlled Plug Load Controllable Receptacle B

Legrand Receptacle (Pass & Seymour). Model 5262CH. 15A, 125V Half-Controlled Plug Load Controllable Receptacle; NEMA 5-15R Configuration; Factory-broken split-circuit tab for 50% plug load control; Double Pole, 4 Wires. material: Nylon face, brass contacts, plated steel strap

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF15A-125V-Half-Controlled-Plug-Load-Controllable-Receptacle-B.pdfData sheet

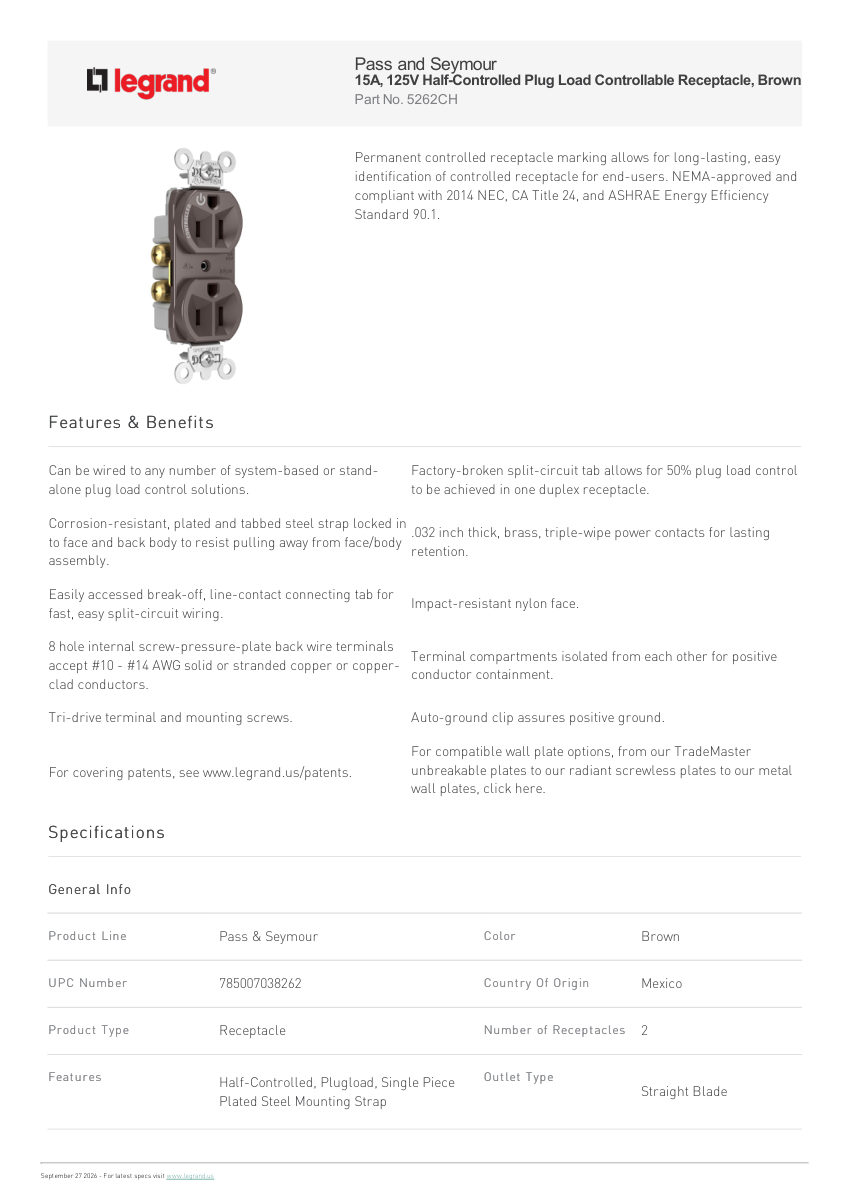

Legrand 15A 125V Half Controlled Plug Load Controllable Receptacle B cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
15A 125V Half Controlled Plug Load Controllable Receptacle B
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog number15A 125V Half Controlled Plug Load Controllable Receptacle B
DescriptionLegrand Receptacle (Pass & Seymour). Model 5262CH. 15A, 125V Half-Controlled Plug Load Controllable Receptacle; NEMA 5-15R Configuration; Factory-broken split-circuit tab for 50% plug load control; Double Pole, 4 Wires. material: Nylon face, brass contacts, plated steel strap
Connection size14 - 10 AWG
End connectionScrew Terminals
FinishBrown
MountingPlated Steel Mounting Strap
Dimensions1.322 in W x 2.635 in H x 0.78 in D.
