DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

Legrand2087

Legrand Dead Front Self-Test GFCI (GFCI). Model 2087. 20A, 125VAC rating; Rated as 1.5 HP motor control switch; Automatic self-test every 3 seconds; SafeLock Protection disconnects power if critical components damaged. material: Nylon face and body, Galvanized Steel mounting straps

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF2087.pdfData sheet

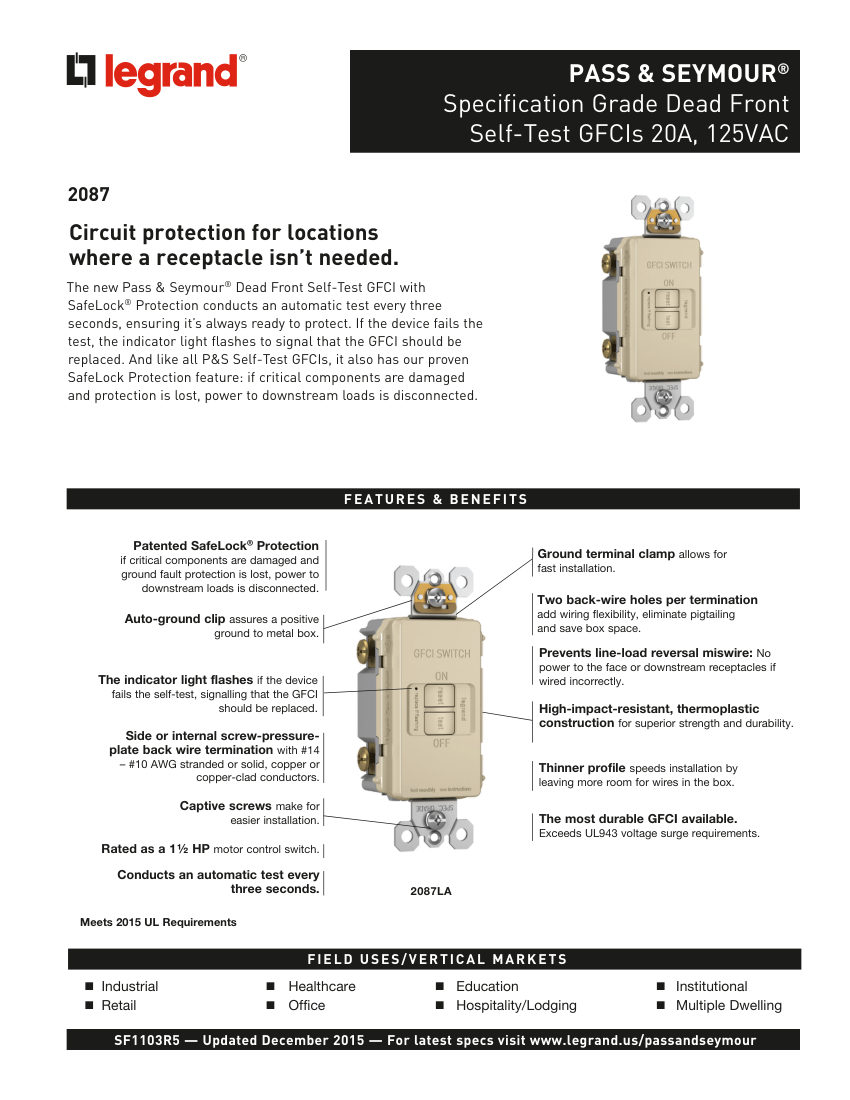

Legrand 2087 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
2087
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog number2087
DescriptionLegrand Dead Front Self-Test GFCI (GFCI). Model 2087. 20A, 125VAC rating; Rated as 1.5 HP motor control switch; Automatic self-test every 3 seconds; SafeLock Protection disconnects power if critical components damaged. material: Nylon face and body, Galvanized Steel mounting straps
Connection size#14 - #10 AWG
End connectionSide or internal screw-pressure-plate back wire
FinishIvory, White, Black, Light Almond
MountingStandard electrical box
Dimensions4.20" x 2.62" x 1.25".

Also cataloged as: 2087I, 2087W, 2087BK, 2087LA, 2087-I, 2087-W, 2087-BK, 2087-LA
