Legrand25703
Legrand High Bay Occupancy Sensor Lens (WattStopper High Bay Sensors). Model HBL Series (HBL1, HBL1M, HBL3, HBL4). HBL1 offers 60' x 20' linear coverage at 40' height; HBL1M offers 30' x 20' coverage with half-pattern cut-off; HBL3 offers 24' diameter coverage at 20' height; HBL4 offers 68' diameter coverage at 40' height. material: Fresnel
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Legrand
- Catalog no.
- 25703
- Product type
- Electrical
- MasterFormat
- 26

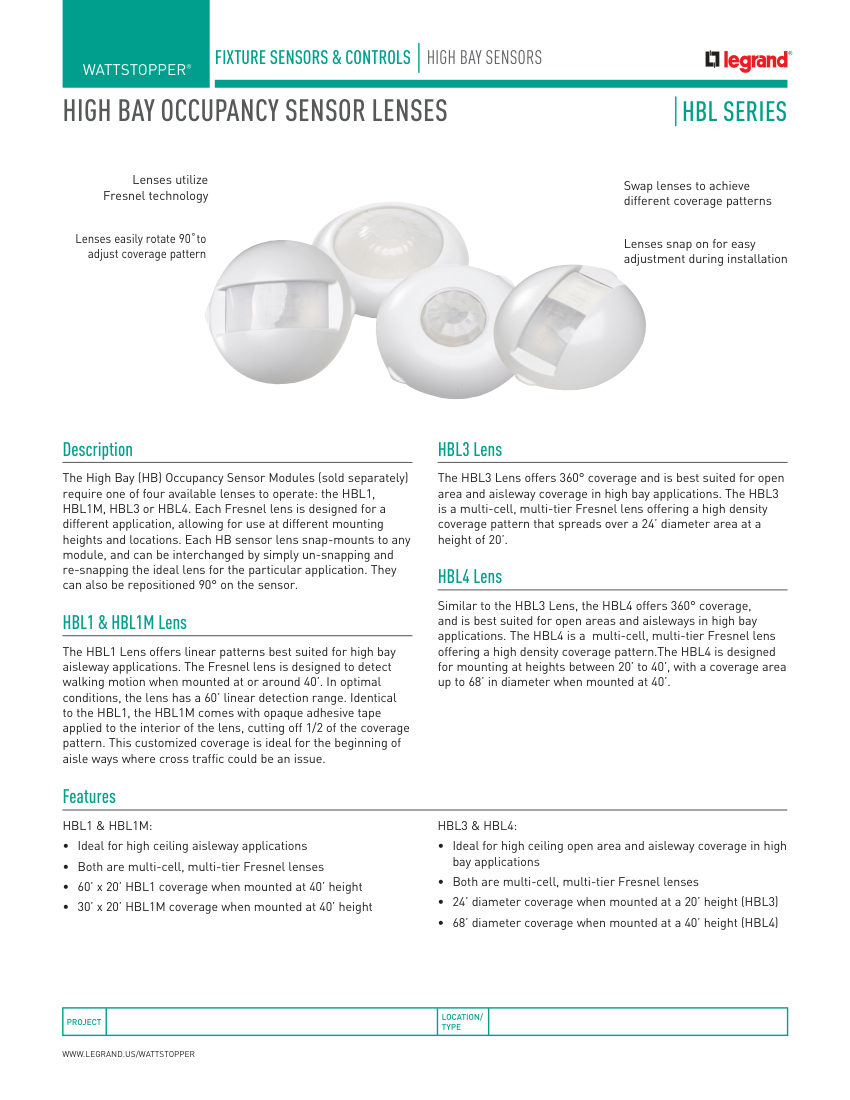

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 25703 |
|---|---|
| Description | Legrand High Bay Occupancy Sensor Lens (WattStopper High Bay Sensors). Model HBL Series (HBL1, HBL1M, HBL3, HBL4). HBL1 offers 60' x 20' linear coverage at 40' height; HBL1M offers 30' x 20' coverage with half-pattern cut-off; HBL3 offers 24' diameter coverage at 20' height; HBL4 offers 68' diameter coverage at 40' height. material: Fresnel |
| Mounting | Snap-mount, rotatable 90°. |
- Official cut sheet, indexed
