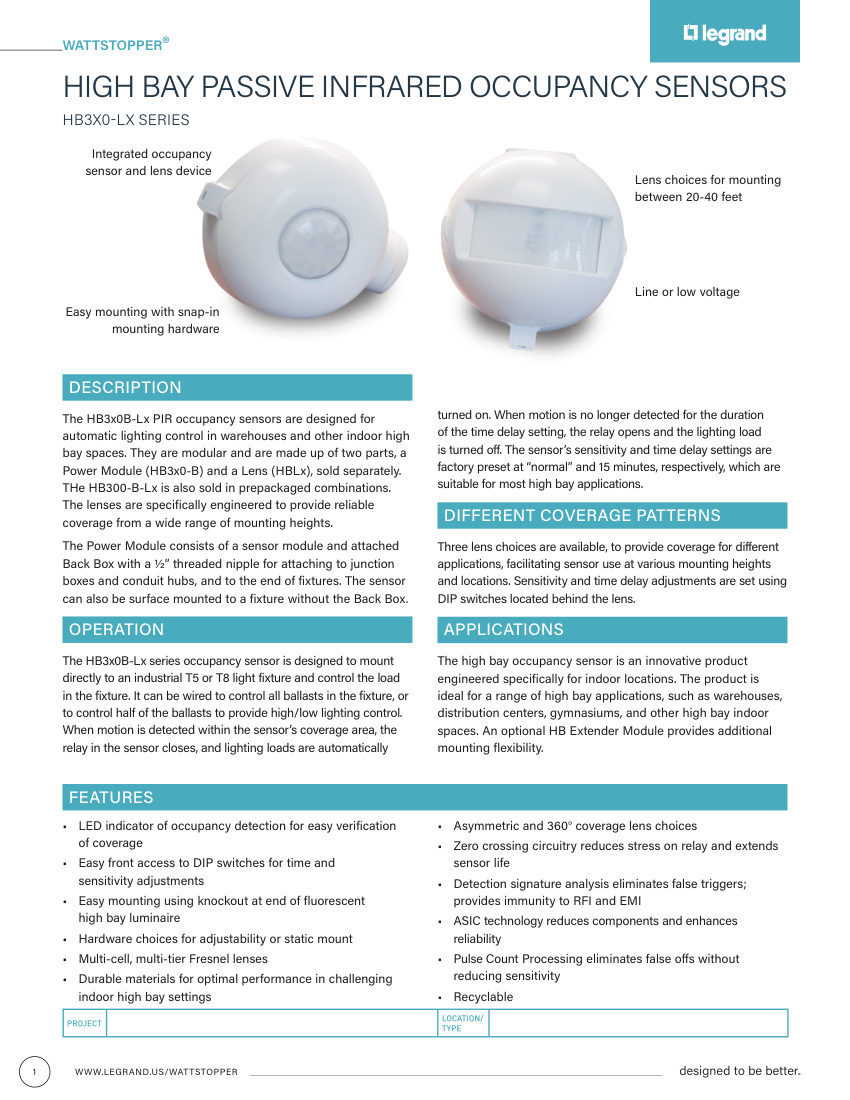

Legrand25882r3_HB3x0-Lx_cutsheet

Legrand High Bay Passive Infrared Occupancy Sensor (WattStopper). Model HB3x0-Lx. Adjustable time delay: 15 seconds to 30 minutes (factory preset 15 min)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF25882r3_HB3x0-Lx_cutsheet.pdfData sheet
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
25882r3_HB3x0-Lx_cutsheet
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog number25882r3_HB3x0-Lx_cutsheet
DescriptionLegrand High Bay Passive Infrared Occupancy Sensor (WattStopper). Model HB3x0-Lx. Adjustable time delay: 15 seconds to 30 minutes (factory preset 15 min)
Mounting height range20-40 feet
Operating temperature32-158°F (0-70°C)
Humidity20-90% non-condensing. material: ABS, flame retardant, UV resistant, impact resistant
Connection size1/2" threaded nipple
End connectionJunction boxes, conduit hubs, or fixture end
MountingSurface mount or fixture mount (T5/T8)
DimensionsBackbox 1.265"; Sensor Module 2.75" x 2.58" x 0.635"; Lens varies by model (L1/L2/L3/L7)
ComplianceUL and c
