DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

Legrand26

Legrand Duplex Receptacle (Electrical Receptacles). Model 26242, 26342. 15A or 20A, 125V rating; NEMA 5-15R or 5-20R configuration; Auto-ground eliminates grounding conductor termination; Tri-drive terminal screws for installation. material: Nylon face, PVC back body, Brass contacts, Steel screws

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF26.pdfData sheet

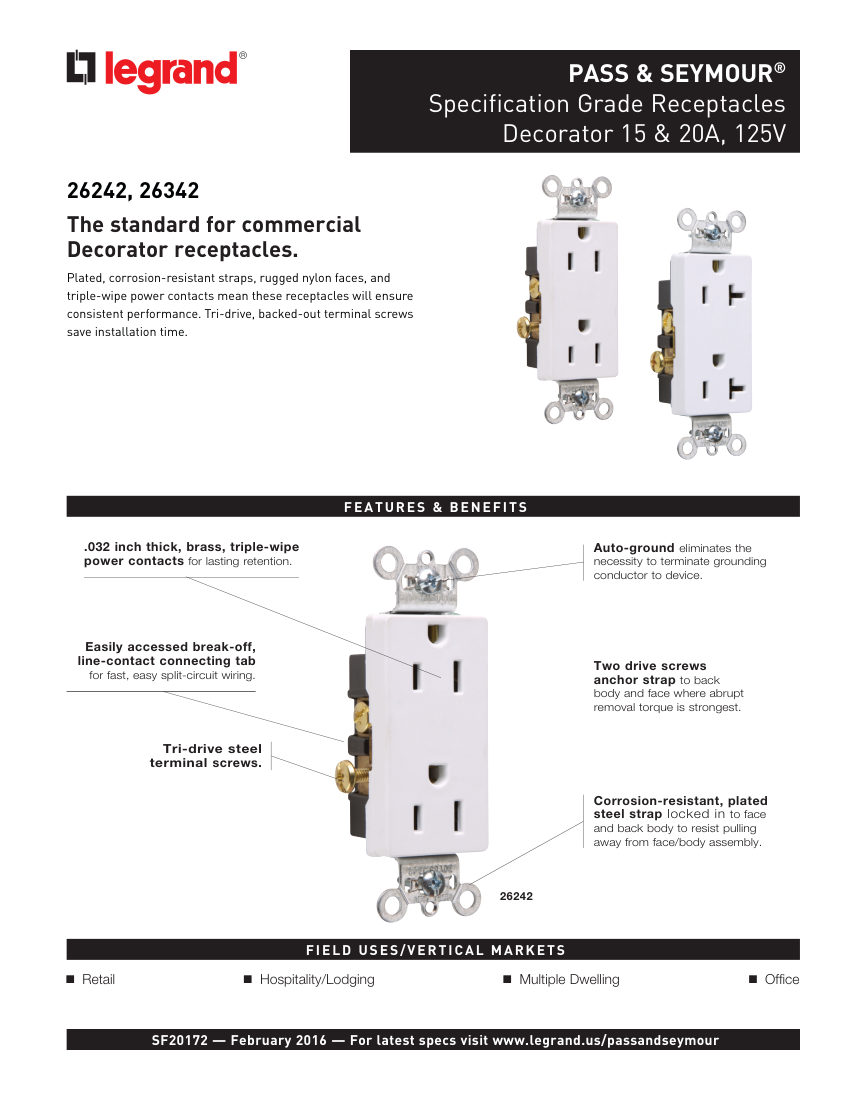

Legrand 26 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
26
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog number26
DescriptionLegrand Duplex Receptacle (Electrical Receptacles). Model 26242, 26342. 15A or 20A, 125V rating; NEMA 5-15R or 5-20R configuration; Auto-ground eliminates grounding conductor termination; Tri-drive terminal screws for installation. material: Nylon face, PVC back body, Brass contacts, Steel screws
Connection size#14 AWG – #10 AWG
End connectionBack & Side Wire
FinishIvory, White, Brown, Gray, Black, Red, Light Almond
MountingStrap
Dimensions3.81" x 3.281" x 1.322".

Also cataloged as: 26242I, 26242W, 26242, 26242GRY, 26242BK, 26242RED, 26242LA, 26342I, 26342W, 26342, 26342GRY
