DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

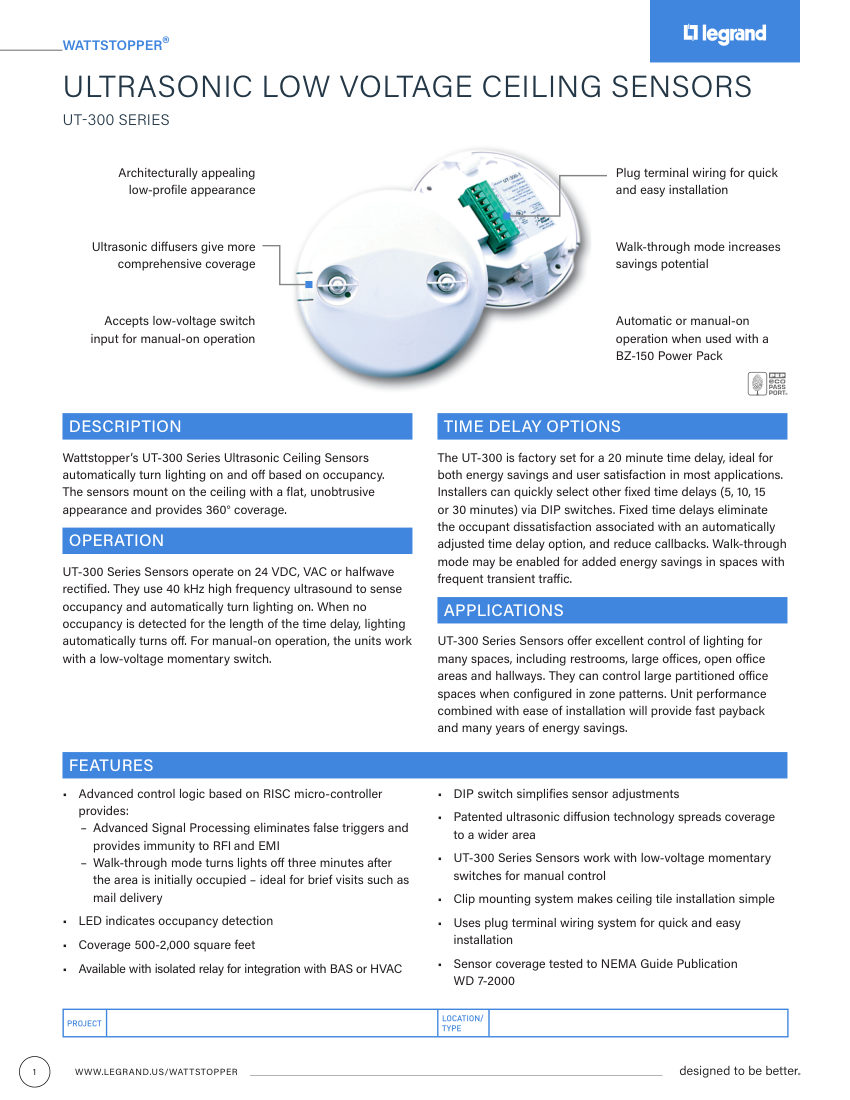

Legrand27334r3_UT-300_cutsheet
Legrand Ultrasonic Low Voltage Ceiling Sensor (Wattstopper). Model UT-300. Ultrasonic frequency: 40 kHz
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Legrand
- Catalog no.
- 27334r3_UT-300_cutsheet
- Product type
- Electrical
- MasterFormat
- 26
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 27334r3_UT-300_cutsheet |
|---|---|
| Description | Legrand Ultrasonic Low Voltage Ceiling Sensor (Wattstopper). Model UT-300. Ultrasonic frequency: 40 kHz |
| Time delays | 5, 10, 15, 20, or 30 minutes |
| Coverage | 500-2,000 square feet |
| Relay rating | 1 Amp at 30 VDC/VAC. endConnection: Plug terminal wiring |
| Mounting | Ceiling tile; 4" square junction box with double-gang mud ring |
| Dimensions | 4.5" x 1" (114.3mm x 25.9mm) diameter x depth |
| Compliance | UL and cUL listed; NEMA Guide Publication WD 7-2000 |
| Voltage | 24 VDC/VAC. |
