DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

Legrand27388r6_LMPC-100 v4_cutsheet

Legrand PIR Ceiling Mount Occupancy Sensor (Wattstopper Digital Lighting Management). Model LMPC-100. Passive infrared (PIR) technology with 360° coverage

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF27388r6_LMPC-100-v4_cutsheet.pdfData sheet

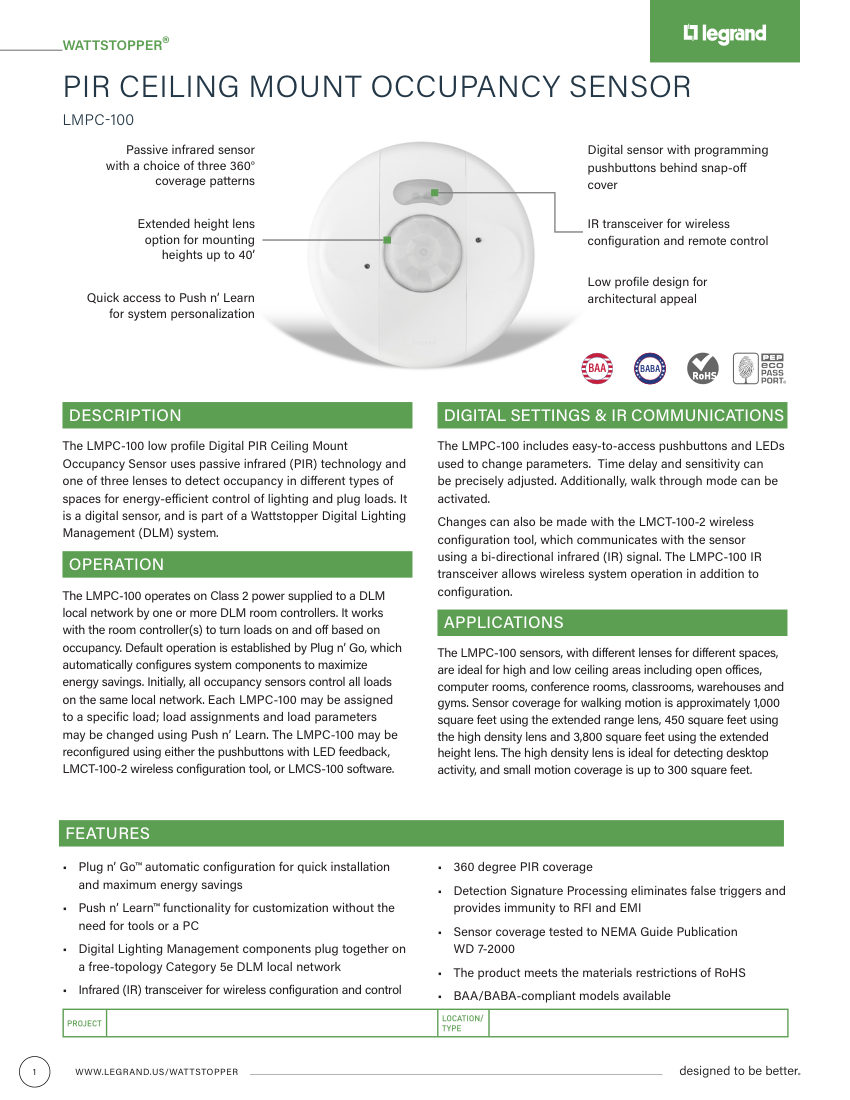

Legrand 27388r6_LMPC-100 v4_cutsheet cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
27388r6_LMPC-100 v4_cutsheet
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog number27388r6_LMPC-100 v4_cutsheet
DescriptionLegrand PIR Ceiling Mount Occupancy Sensor (Wattstopper Digital Lighting Management). Model LMPC-100. Passive infrared (PIR) technology with 360° coverage
Current consumption7mA
Operating temperature32-104°F (0-40°C); Includes IR transceiver for wireless configuration. connectionSize: 2 RJ45 ports
End connectionDLM local network
MountingCeiling Mount
Dimensions4.5" x 2.9" x 0.8" (114mm x 74mm x 20mm)
ComplianceUL, cUL, FCC Part 15, RoHS, NEMA WD 7-2000
Voltage24VDC.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
