DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

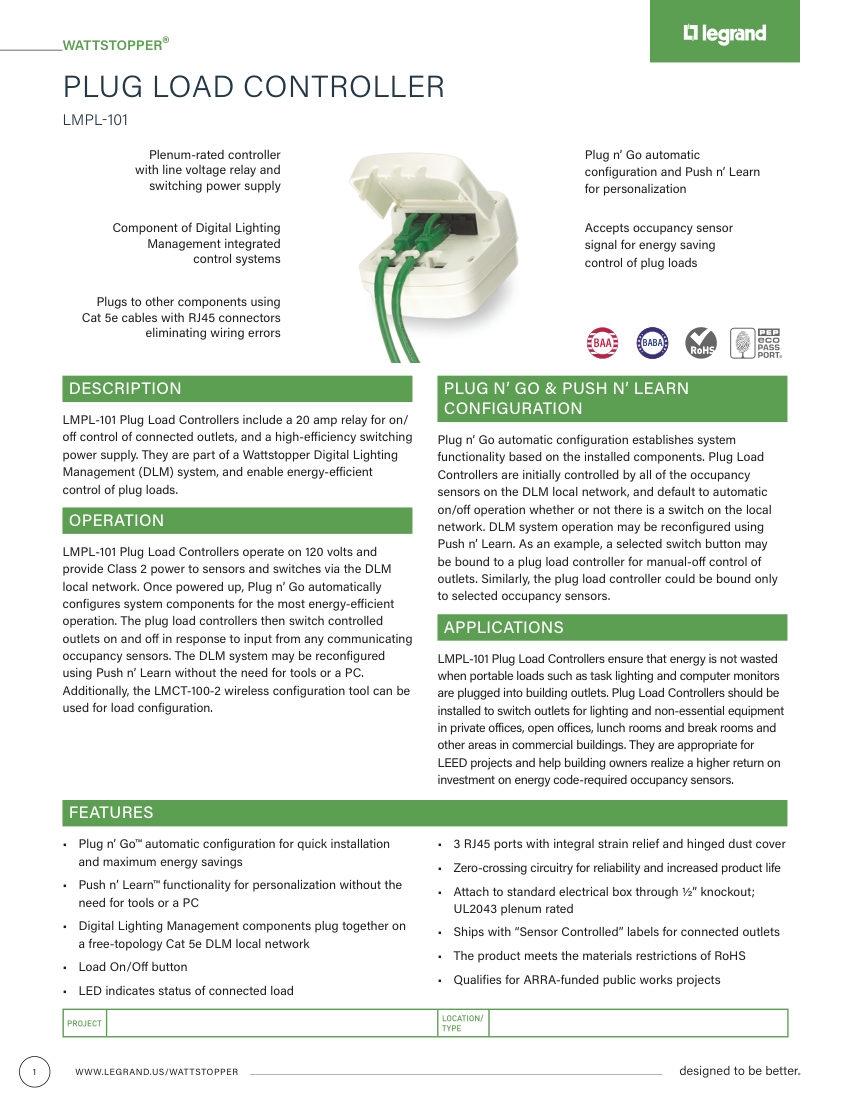

Legrand27396r4_LMPL-101_cutsheet
Legrand Plug Load Controller (Wattstopper Digital Lighting Management). Model LMPL-101. 20A relay for on/off control of connected outlets
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Legrand
- Catalog no.
- 27396r4_LMPL-101_cutsheet
- Product type
- Electrical
- MasterFormat
- 26
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 27396r4_LMPL-101_cutsheet |
|---|---|
| Description | Legrand Plug Load Controller (Wattstopper Digital Lighting Management). Model LMPL-101. 20A relay for on/off control of connected outlets |
| Class 2 output | 24VDC, 150mA across 3 RJ45 ports; Plenum-rated (UL2043); Plug n' Go automatic configuration. connectionSize: Cat 5e RJ45 |
| End connection | RJ45 |
| Mounting | Standard electrical box via 1/2" knockout |
| Compliance | UL2043, UL88T9, cUL, FCC Part 15, RoHS |
| Voltage | 120VAC, 50/60Hz. |
