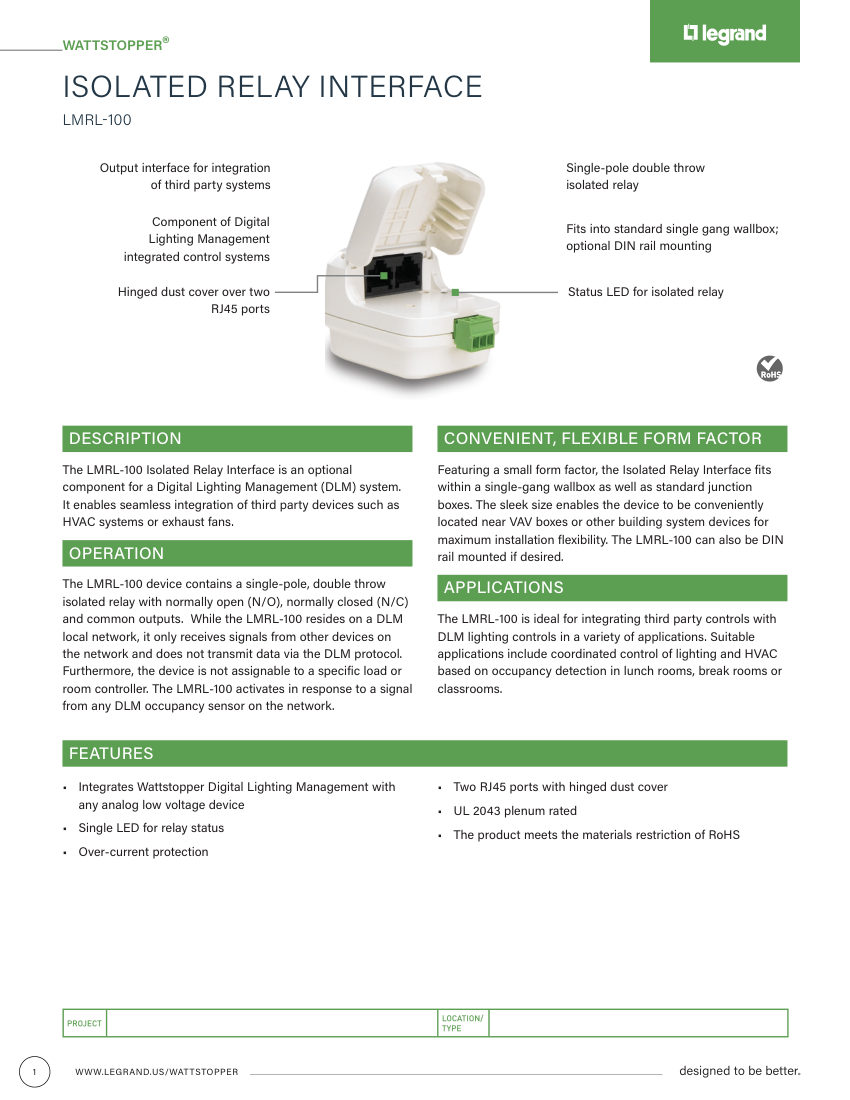

Legrand27568r3_LMRL-100_cutsheet

Name: Legrand 27568r3_LMRL-100_cutsheet
Brand: Legrand
SKU: 27568r3_LMRL-100_cutsheet

Legrand Isolated Relay Interface (Wattstopper Digital Lighting Management). Model LMRL-100. Single-pole double throw (SPDT) isolated relay

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	27568r3_LMRL-100_cutsheet
Description	Legrand Isolated Relay Interface (Wattstopper Digital Lighting Management). Model LMRL-100. Single-pole double throw (SPDT) isolated relay
Relay rating	24VDC/VAC, 1A; Two RJ45 ports for DLM local network connection
Current consumption	7mA. endConnection: RJ45
Mounting	Single-gang wallbox, 4" x 4" j-box, 3" octagonal box, DIN rail
Dimensions	2.5" x 2.0" x 1.6" (63mm x 51mm x 40mm)
Compliance	UL 2043 plenum rated, UL and cUL listed, FCC part 15 compliant, RoHS
Voltage	24VDC.
