DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

Legrand31191r3_LMJA-IO-R-34_cutsheet

Legrand IO Module (WattStopper Digital Light Management). Model LMJA-IO-R-34. 16 Universal inputs (Type 3 thermistors, 0-100K ohm, 0-10VDC, 0-20 mA); 10 Relay outputs (Form A contacts, 24VAC @ 0.5A); 8 Analog outputs (0-10VDC); Connects to LMJA Network Controller via shielded RS485 bus. endConnection: RS485

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF31191r3_LMJA-IO-R-34_cutsheet.pdfData sheet

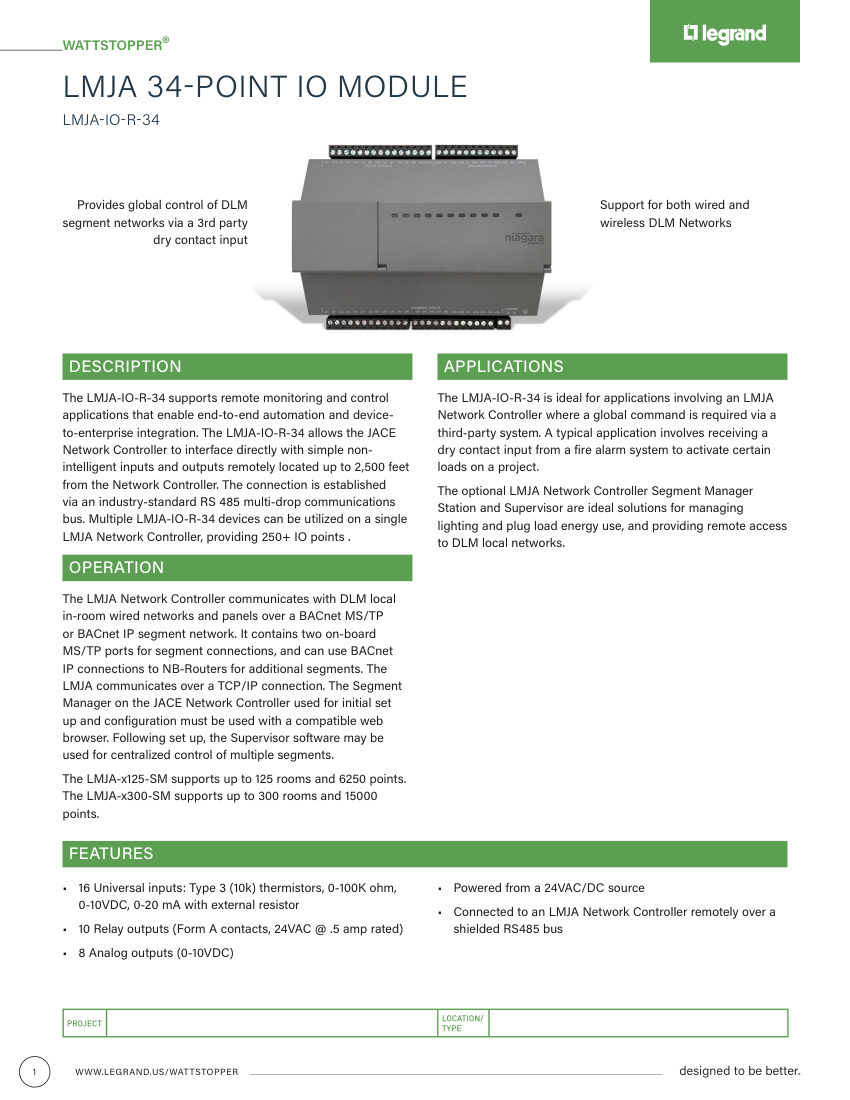

Legrand 31191r3_LMJA-IO-R-34_cutsheet cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
31191r3_LMJA-IO-R-34_cutsheet
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog number31191r3_LMJA-IO-R-34_cutsheet
DescriptionLegrand IO Module (WattStopper Digital Light Management). Model LMJA-IO-R-34. 16 Universal inputs (Type 3 thermistors, 0-100K ohm, 0-10VDC, 0-20 mA); 10 Relay outputs (Form A contacts, 24VAC @ 0.5A); 8 Analog outputs (0-10VDC); Connects to LMJA Network Controller via shielded RS485 bus. endConnection: RS485
MountingDin Rail 35mm x 7.5mm
Dimensions6.8 in x 4.5 in x 2.4 in (162mm x 116mm x 61mm)
ComplianceC-UL, CE EN 61326-1:2013, FCC part 15 class b, China ROHS, RoHS2, REACH, WEEE, RCM
Voltage24VAC/DC.
