Legrand31727r2_RH-253_cutsheet

Legrand Decorator Single Pole Momentary Switch (WattStopper). Model RH-253. Single pole momentary switch for on/off control; Compatible with CH-250, CU-250, CD-250, RH-250, and RD-250 sensors; Permits control from up to four locations

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF31727r2_RH-253_cutsheet.pdfData sheet

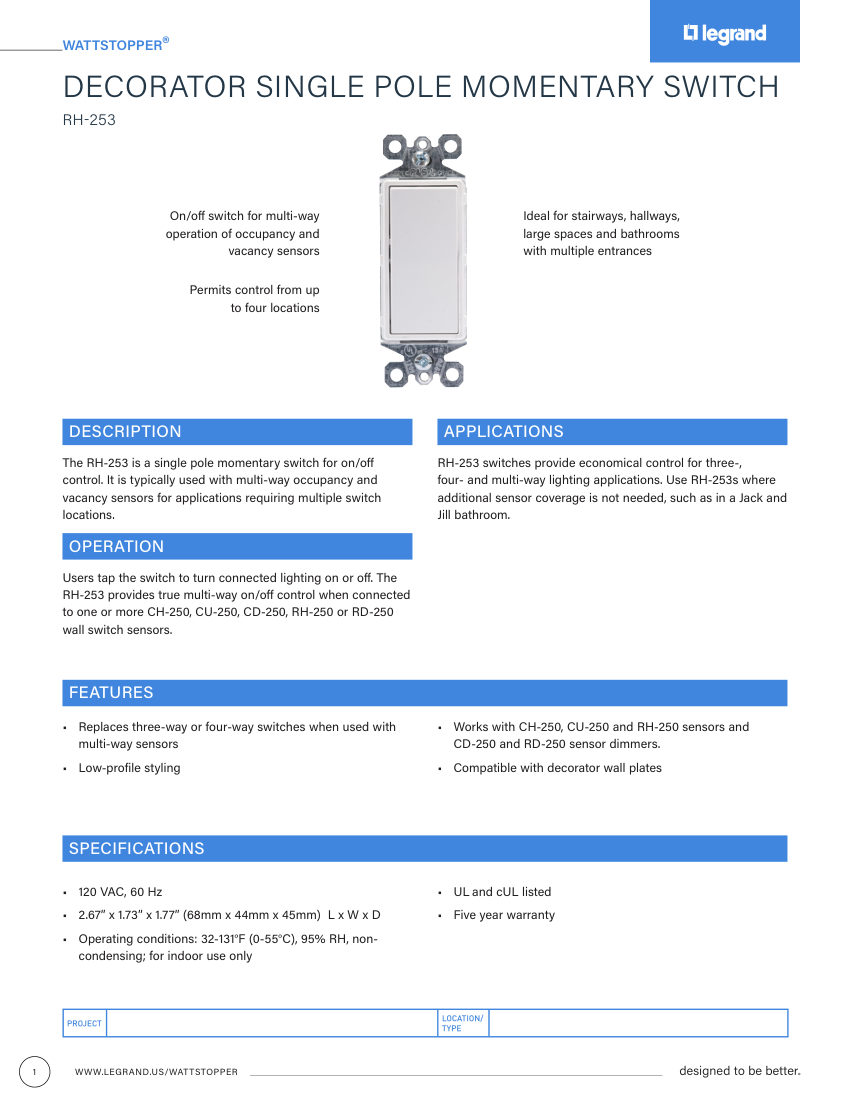

Legrand 31727r2_RH-253_cutsheet cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
31727r2_RH-253_cutsheet
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog number31727r2_RH-253_cutsheet
DescriptionLegrand Decorator Single Pole Momentary Switch (WattStopper). Model RH-253. Single pole momentary switch for on/off control; Compatible with CH-250, CU-250, CD-250, RH-250, and RD-250 sensors; Permits control from up to four locations
Operating conditions32-131°F (0-55°C), 95% RH, non-condensing. finish: White
MountingWall plate (ordered separately)
Dimensions2.67" x 1.73" x 1.77" (68mm x 44mm x 45mm)
ComplianceUL and cUL listed
Voltage120 VAC, 60 Hz.
