DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

Legrand32294r3_LDCM-PL-120-277-010V_cutsheet

Legrand 0-10V to Reverse Phase Converter (WattStopper). Model LDCM-PL-120-277-010V. Converts 0-10V signal to reverse phase dimming; Auto-sensing for 120V and 277V loads

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF32294r3_LDCM-PL-120-277-010V_cutsheet.pdfData sheet

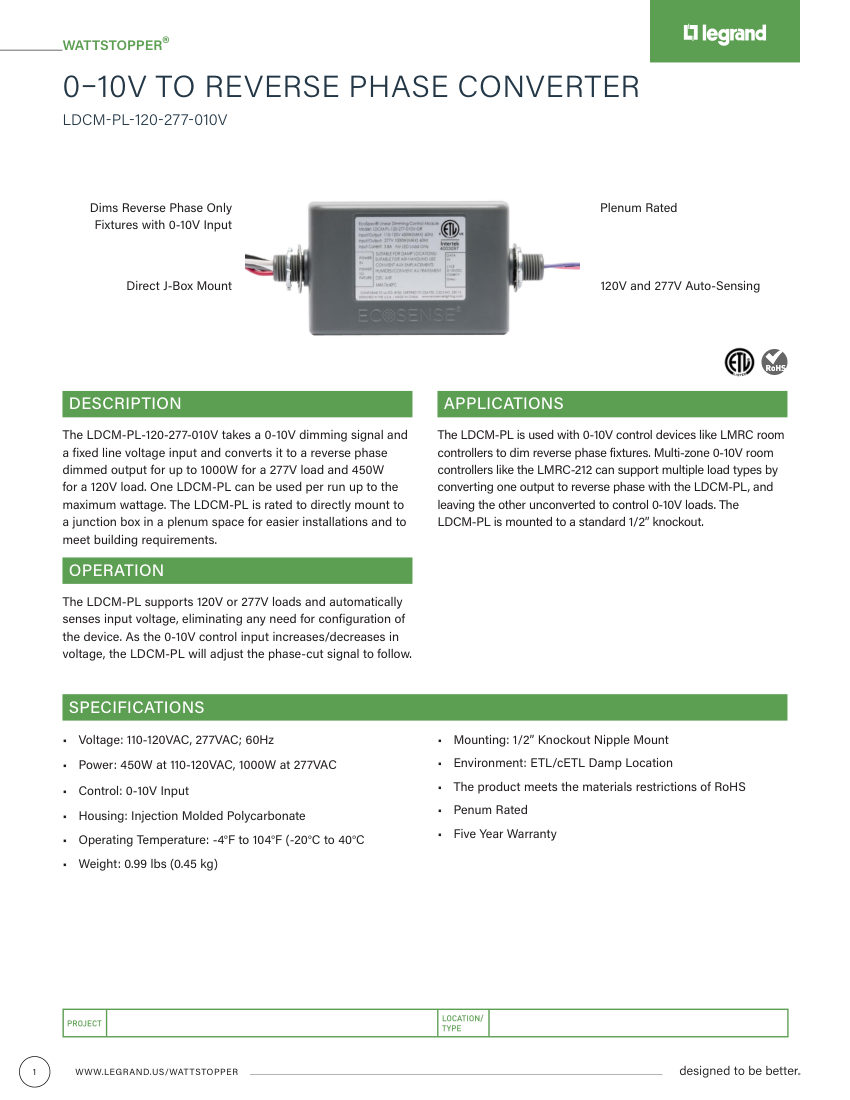

Legrand 32294r3_LDCM-PL-120-277-010V_cutsheet cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
32294r3_LDCM-PL-120-277-010V_cutsheet
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog number32294r3_LDCM-PL-120-277-010V_cutsheet
DescriptionLegrand 0-10V to Reverse Phase Converter (WattStopper). Model LDCM-PL-120-277-010V. Converts 0-10V signal to reverse phase dimming; Auto-sensing for 120V and 277V loads
Power rating450W at 120V, 1000W at 277V; Plenum rated for installation in plenum spaces. material: Injection Molded Polycarbonate
Connection size1/2" Knockout
MountingDirect J-Box Mount
Dimensions7" x 5.4" x 3.4" (178mm x 138mm x 87mm)
ComplianceETL/cETL Damp Location, RoHS, Plenum Rated
Voltage110-120VAC, 277VAC; 60Hz.
