DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

Legrand33737r2 DMX DALI GW II33737r2_DMX-DALI-GW-II_cutsheet

Legrand DMX DALI Gateway (WattStopper). Model DMX-DALI-GW-II. Provides 64 DALI-2 addresses and DMX addresses 65-512; Ethernet based connectivity (10/100Mbit); Supports up to 16 DALI groups; DALI-2 certified with Device Type 8 control. material: Plastic

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF33737r2_DMX-DALI-GW-II_cutsheet.pdfData sheet

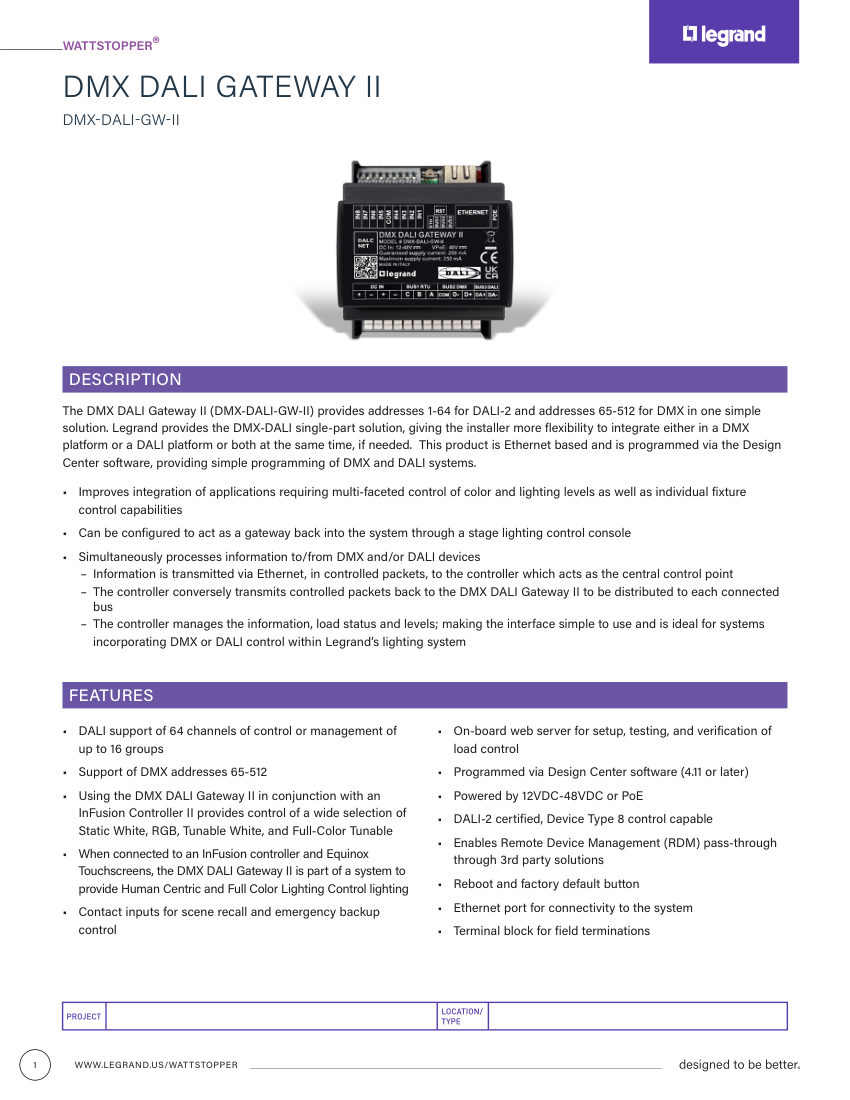

Legrand 33737r2_DMX-DALI-GW-II_cutsheet cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
33737r2_DMX-DALI-GW-II_cutsheet
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog number33737r2_DMX-DALI-GW-II_cutsheet
DescriptionLegrand DMX DALI Gateway (WattStopper). Model DMX-DALI-GW-II. Provides 64 DALI-2 addresses and DMX addresses 65-512; Ethernet based connectivity (10/100Mbit); Supports up to 16 DALI groups; DALI-2 certified with Device Type 8 control. material: Plastic
Connection sizeRJ45
End connectionEthernet, Terminal block
Mounting35mm DIN Rail
Dimensions2.83" x 3.62" x 2.44" (72mm x 92mm x 62mm)
ComplianceUKCA, CE, IEC 61547, IEC 61000-3-2.
