DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

Legrand33752r2_DSW-301M_cutsheet

Legrand Dual Technology Wall Switch Vacancy Sensor (WattStopper). Model DSW-301M. Operates in Manual-On mode only; Combines PIR and Ultrasonic detection technologies

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF33752r2_DSW-301M_cutsheet.pdfData sheet

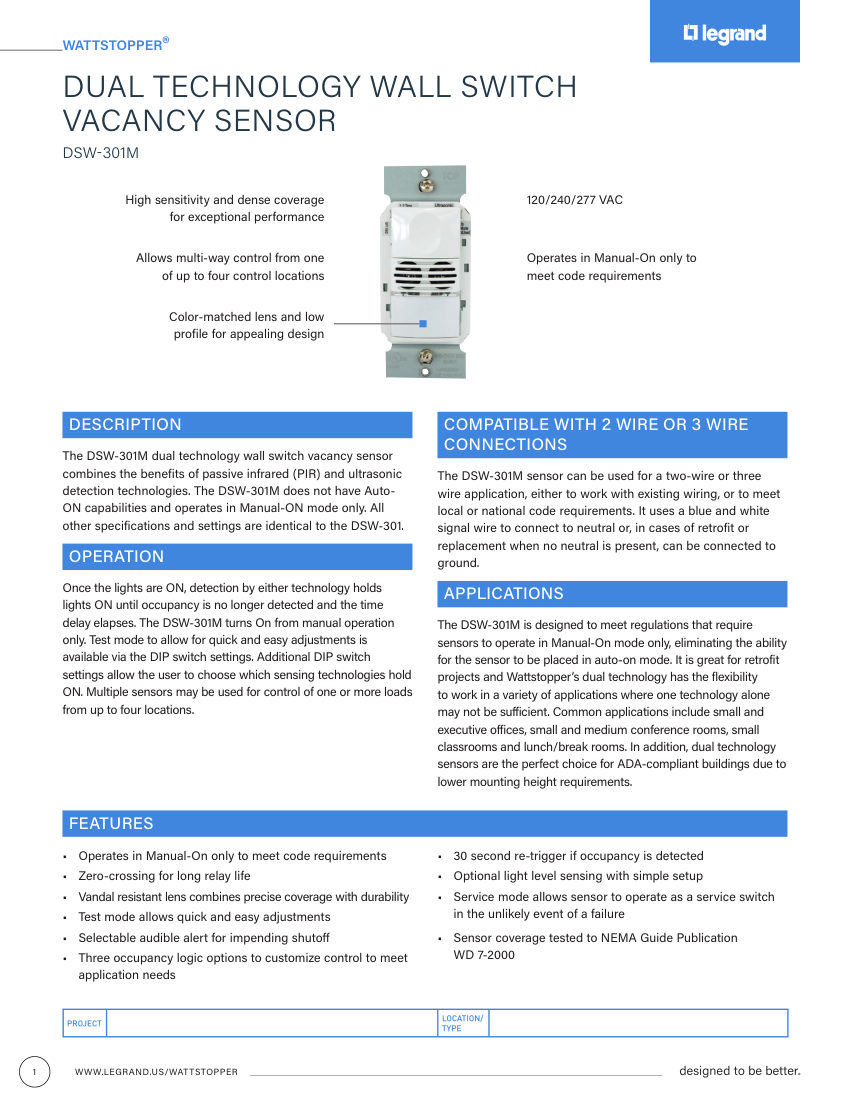

Legrand 33752r2_DSW-301M_cutsheet cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
33752r2_DSW-301M_cutsheet
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog number33752r2_DSW-301M_cutsheet
DescriptionLegrand Dual Technology Wall Switch Vacancy Sensor (WattStopper). Model DSW-301M. Operates in Manual-On mode only; Combines PIR and Ultrasonic detection technologies
Load capacity0-1000W @ 120VAC, 0-1200W @ 240/277VAC
Time delays5, 15, or 30 minutes. endConnection: 2-wire or 3-wire
MountingWall switch
Dimensions2.73" x 1.75" x 1.81" (69mm x 44mm x 46mm)
ComplianceUL and cUL listed, NEMA Guide Publication WD 7-2000
Voltage120/240/277 VAC.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
