Legrand341 500

Legrand Bottom Alignment Plate (Cable Tray Accessories). Model FTBC 300 / FTBC 600. Maintains trough bottom alignment with heavy cable loads; FTBC 300 fits tray widths 4-12 inches (100-300 mm); FTBC 600 fits tray widths 20-24 inches (500-600 mm); Standard finish is Pre-Galvanized Carbon Steel. material: Carbon Steel ASTM A510 Grade 1008

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

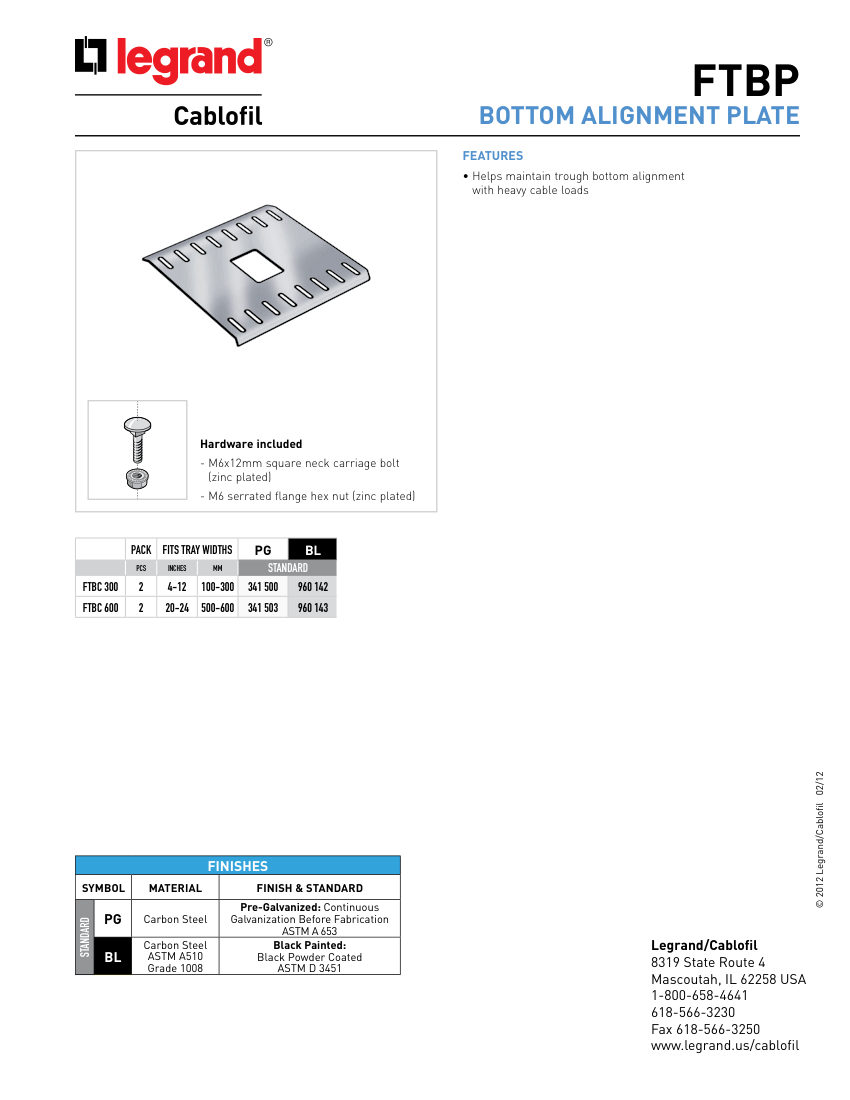

PDF341-500.pdfData sheet
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
341 500
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog number341 500
DescriptionLegrand Bottom Alignment Plate (Cable Tray Accessories). Model FTBC 300 / FTBC 600. Maintains trough bottom alignment with heavy cable loads; FTBC 300 fits tray widths 4-12 inches (100-300 mm); FTBC 600 fits tray widths 20-24 inches (500-600 mm); Standard finish is Pre-Galvanized Carbon Steel. material: Carbon Steel ASTM A510 Grade 1008
FinishPre-Galvanized (ASTM A 653) or Black Powder Coated (ASTM D 3451)
MountingHardware included: M6x12mm square neck carriage bolt and M6 serrated flange hex nut (zinc plated)
DimensionsFits tray widths 100-300mm (FTBC 300) or 500-600mm (FTBC 600); co

Also cataloged as: 960 142, 341 503, 960 143, FTBP-FTBC300, FTBP-FTBC600
