DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

Legrand35024r3_CP12_CP24_cutsheet

Legrand Dimming Relay Panel (Wattstopper PLUS). Model EN-CP24-10V / EN-CP12-10V. Up to 24 0-10V dimming outputs, sinking 30mA each; Maximum output load rating: 20A @ 120/277/347V; SCCR (short circuit current rating): 5,000 amps; Compatible with GreenBus Wired Manager and LENC series enclosures. mounting: Surface and Flush mounting (compatible with LENC enclosures)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF35024r3_CP12_CP24_cutsheet.pdfData sheet

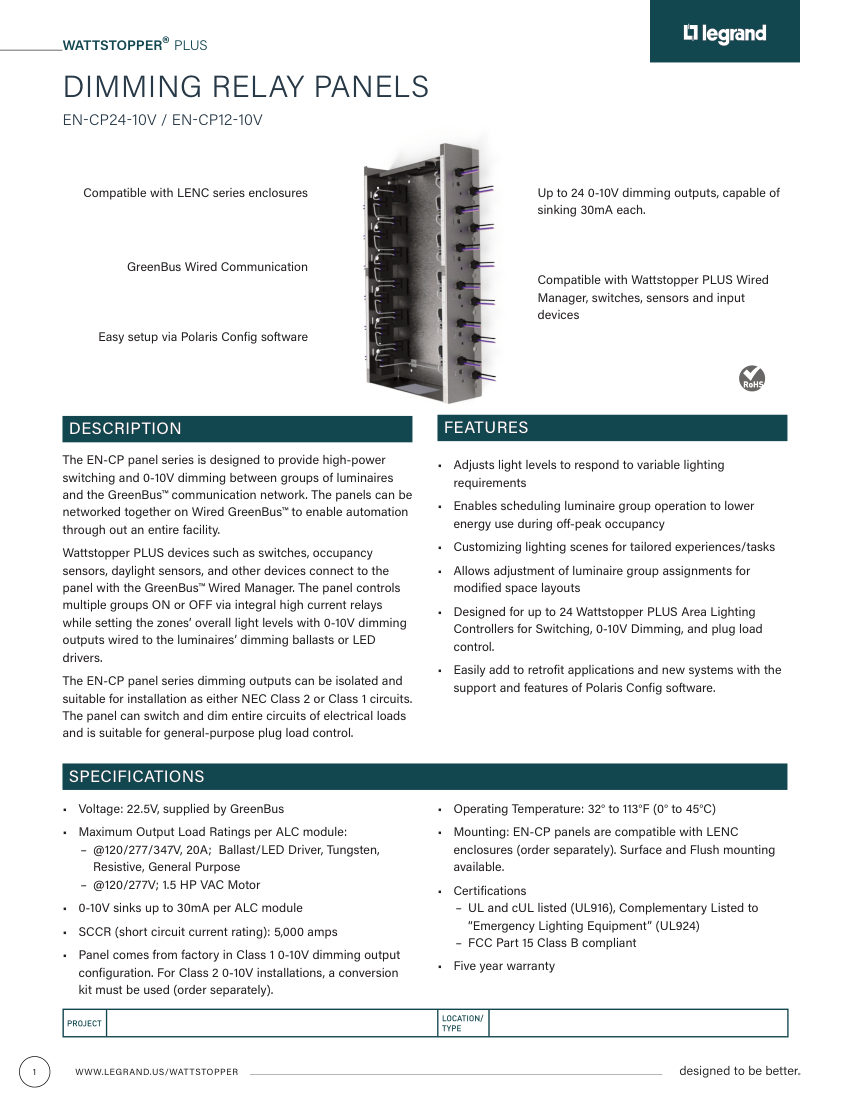

Legrand 35024r3_CP12_CP24_cutsheet cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
35024r3_CP12_CP24_cutsheet
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog number35024r3_CP12_CP24_cutsheet
DescriptionLegrand Dimming Relay Panel (Wattstopper PLUS). Model EN-CP24-10V / EN-CP12-10V. Up to 24 0-10V dimming outputs, sinking 30mA each; Maximum output load rating: 20A @ 120/277/347V; SCCR (short circuit current rating): 5,000 amps; Compatible with GreenBus Wired Manager and LENC series enclosures. mounting: Surface and Flush mounting (compatible with LENC enclosures)
ComplianceUL and cUL listed (UL916), Complementary Listed to UL924, FCC Part 15 Class B
Voltage22.5V (supplied by GreenBus); 120/277/347V AC load.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
