DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

Legrand36386r1_EN-GS-150_cutsheet

Legrand Graphic Switch (Wattstopper PLUS). Model EN-GS-150. 5.7" Full Color Capacitive Touch LCD Display; Power-over-Ethernet (PoE) IEEE 802.3af/at; Supports up to 8 configurable screens; Compatible with GreenBus, Wireless, and DALI. material: Glass, Aluminum trim, Plastic enclosure

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF36386r1_EN-GS-150_cutsheet.pdfData sheet

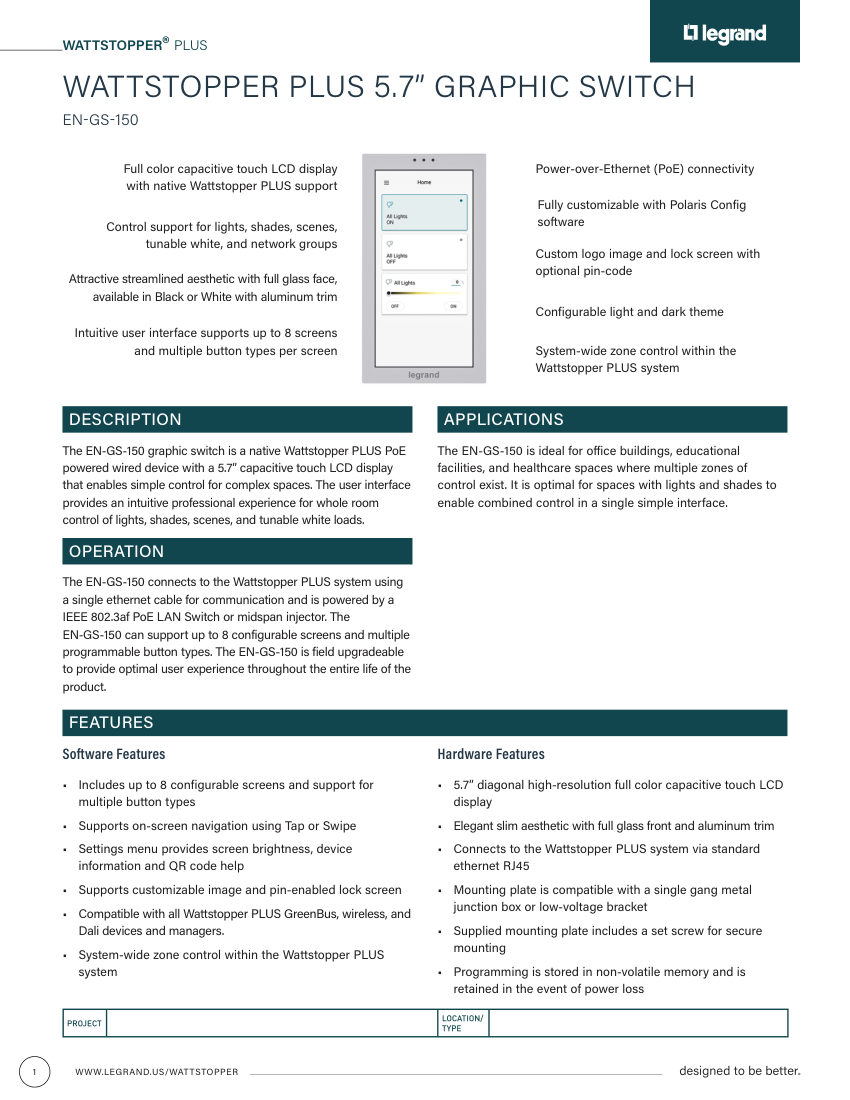

Legrand 36386r1_EN-GS-150_cutsheet cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
36386r1_EN-GS-150_cutsheet
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog number36386r1_EN-GS-150_cutsheet
DescriptionLegrand Graphic Switch (Wattstopper PLUS). Model EN-GS-150. 5.7" Full Color Capacitive Touch LCD Display; Power-over-Ethernet (PoE) IEEE 802.3af/at; Supports up to 8 configurable screens; Compatible with GreenBus, Wireless, and DALI. material: Glass, Aluminum trim, Plastic enclosure
Connection sizeRJ45
End connectionRJ45 LAN/PoE port
FinishBlack or White painted bezel
MountingSingle gang metal junction box or low-voltage bracket
Dimensions5.9" x 3.2" x 1.24" (150mm x 81mm x 32mm).
