DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

Legrand570

Legrand Cable Channel Reducer Plate (Cable Management). Model CC46xRSP-xx. Torque specification: 19 ft/lbs for bolts/nuts; Kit includes one reducer plate and all necessary hardware

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF570.pdfData sheet

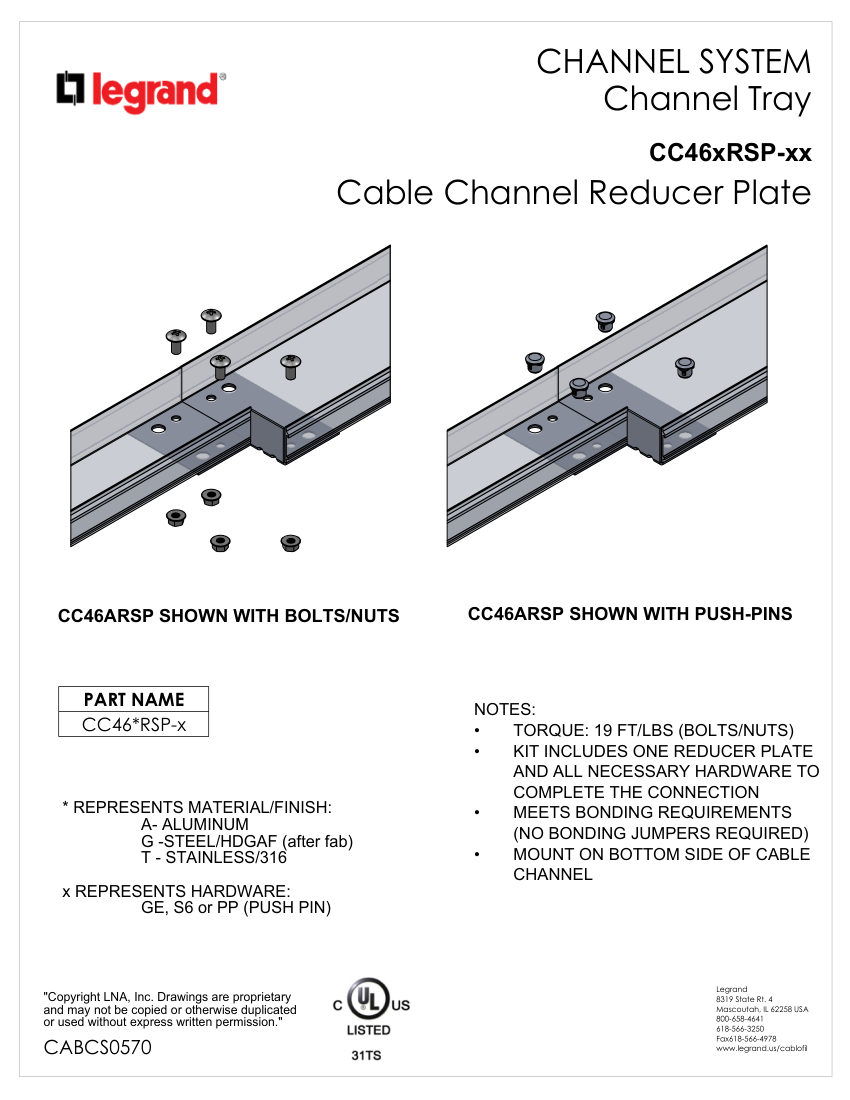

Legrand 570 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
570
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog number570
DescriptionLegrand Cable Channel Reducer Plate (Cable Management). Model CC46xRSP-xx. Torque specification: 19 ft/lbs for bolts/nuts; Kit includes one reducer plate and all necessary hardware
Hardware optionsGE, S6, or PP (Push Pin)
Material optionsAluminum (A), Steel/HDGAF (G), Stainless/316 (T). material: Aluminum, Steel/HDGAF, Stainless/316
Connection size46
End connectionBolts/Nuts or Push-Pins
FinishHDGAF (after fab)
MountingBottom side of cable channel
ComplianceMeets bonding requirements (no bonding jumpers required).
