DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

Legrand582

Legrand Solid Cable Channel Vertical Inside Fitting (Cable Management). Model CCS-A-90VI12-06. 90 Degree Angle; Solid Bottom Construction; 12.000" Channel Length; 16.920" Dimension A. material: Aluminum Alloy 5052

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF582.pdfData sheet

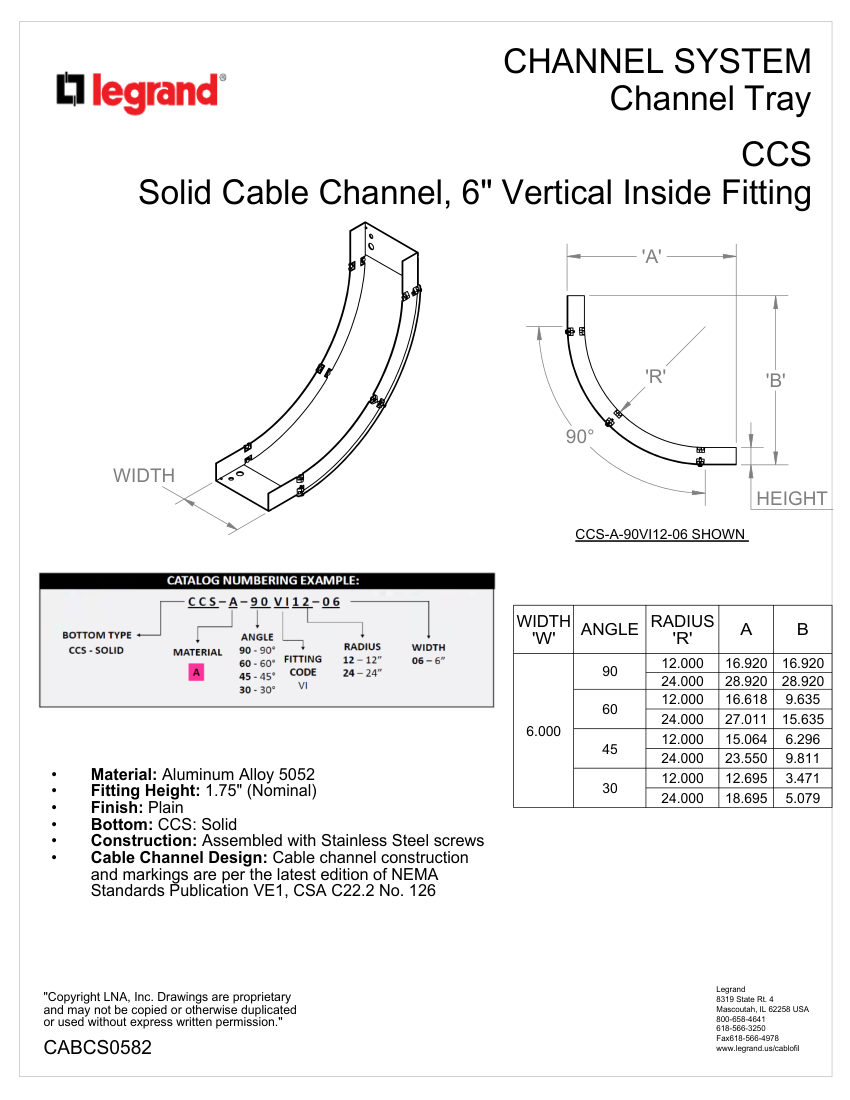

Legrand 582 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
582
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog number582
DescriptionLegrand Solid Cable Channel Vertical Inside Fitting (Cable Management). Model CCS-A-90VI12-06. 90 Degree Angle; Solid Bottom Construction; 12.000" Channel Length; 16.920" Dimension A. material: Aluminum Alloy 5052
Connection size6" Width
End connectionVertical Inside
FinishPlain
MountingAssembled with Stainless Steel screws
DimensionsWidth 6.000", Height 1.75" (Nominal).
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
