DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

Legrand62

Legrand Plug Load Controllable Receptacle (Electrical Receptacles). Model 5262CH, 5362CH, 5262CD, 5362CD, TR5262CH, TR5362CH, TR5262CD, TR5362CD. Maximum Working Voltage: 125V; Dielectric Withstand Voltage: 2000V minimum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF62.pdfData sheet

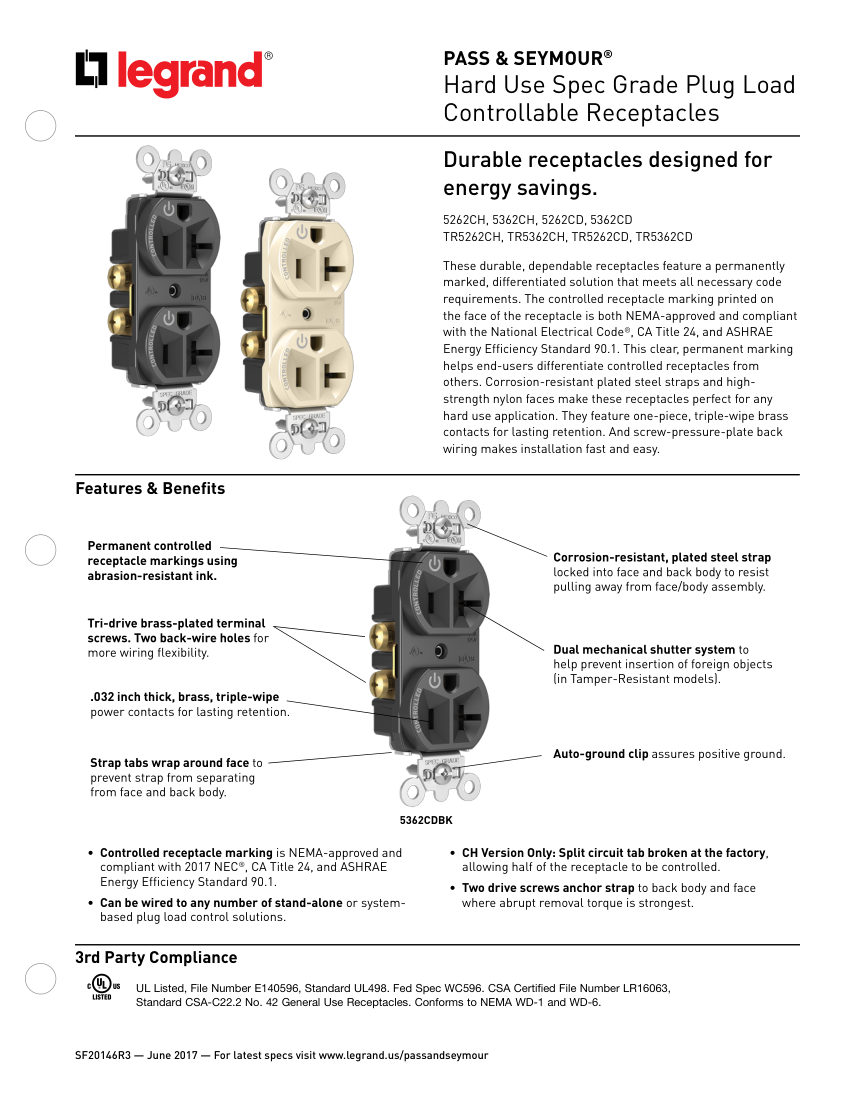

Legrand 62 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Legrand
Catalog no.
62
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog number62
DescriptionLegrand Plug Load Controllable Receptacle (Electrical Receptacles). Model 5262CH, 5362CH, 5262CD, 5362CD, TR5262CH, TR5362CH, TR5262CD, TR5362CD. Maximum Working Voltage: 125V; Dielectric Withstand Voltage: 2000V minimum
Operating Temperature-40°C to +60°C
FlammabilityUL94 V2. material: Nylon face, PVC back body, Brass contacts, Zinc-Plated Steel strap
Connection size#14 AWG - #10 AWG copper conductor
End connectionScrew-pressure-plate back wiring
MountingStrap mount
Dimensions3.281" x 2.635" x 1.322"
ComplianceUL Listed, CSA Certified, NEMA WD-1, NEMA WD-6, NEC, CA Title 24

Also cataloged as: 5262CHI, 5262CHW, 5262CH, 5262CHGRY, 5262CHBK, 5262CHLA, 5262CHGN, 5262CHBL, 5362CHI, 5362CHW, 5362CH
